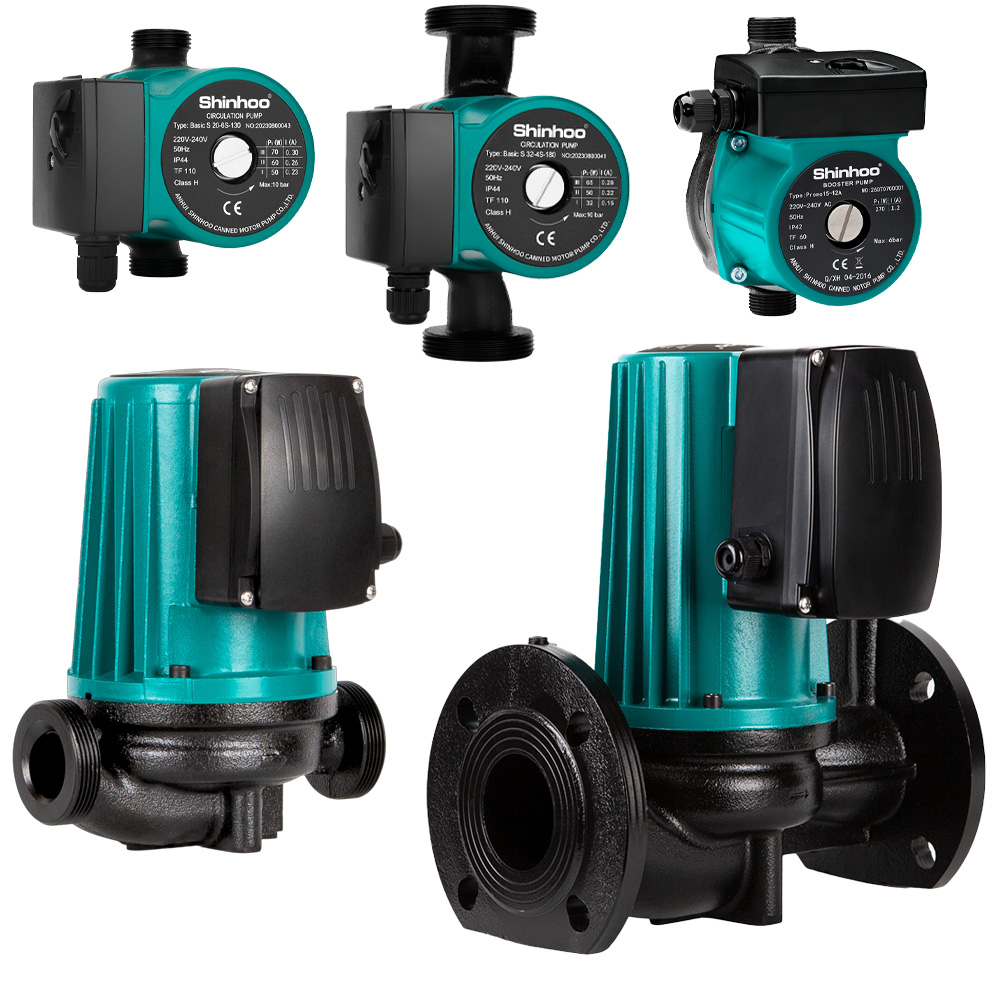

Cirkulacione pumpe

Cirkulacione pumpe



Funktion

kleine Größe

Keine Leckage

Geringe Geräuschentwicklung

Einfache Installation

Stabile Funktion



Anwendungsbereich

  • Warmwasserzirkulation und Druckbeaufschlagung in Bereichen wie Wohnungen, Villen, Heizkesseln, Klimaanlagen usw
Prilagođeno
Modell Šifra Kriva Maksimalna visina (m) Maksimalni protok (m³/h) Snaga (W) Frekvencija (Hz) DN(mm) Napon (V)

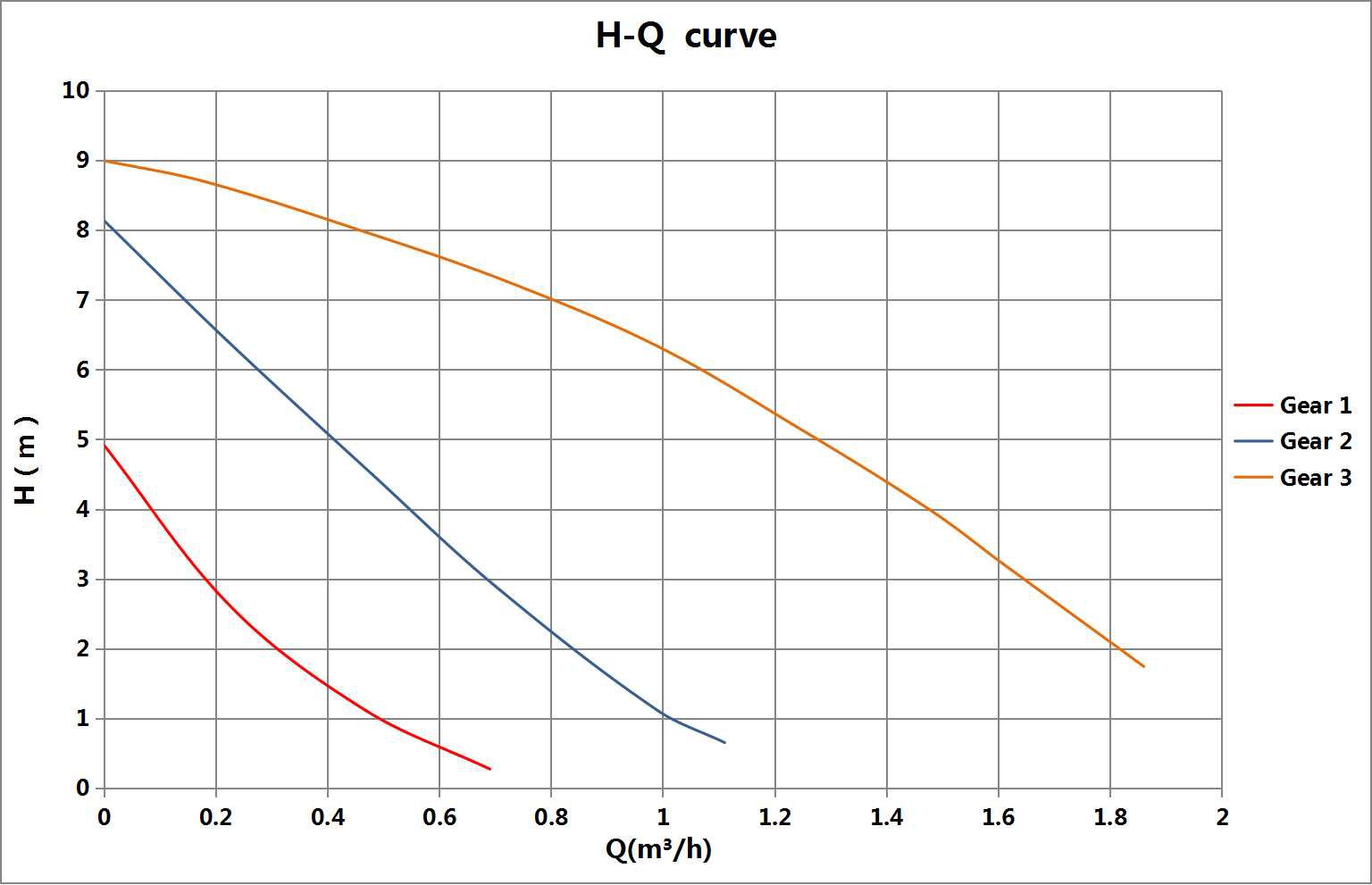

Basic 15-9S-130 3010100100040 9 1.8 120 50 15 230

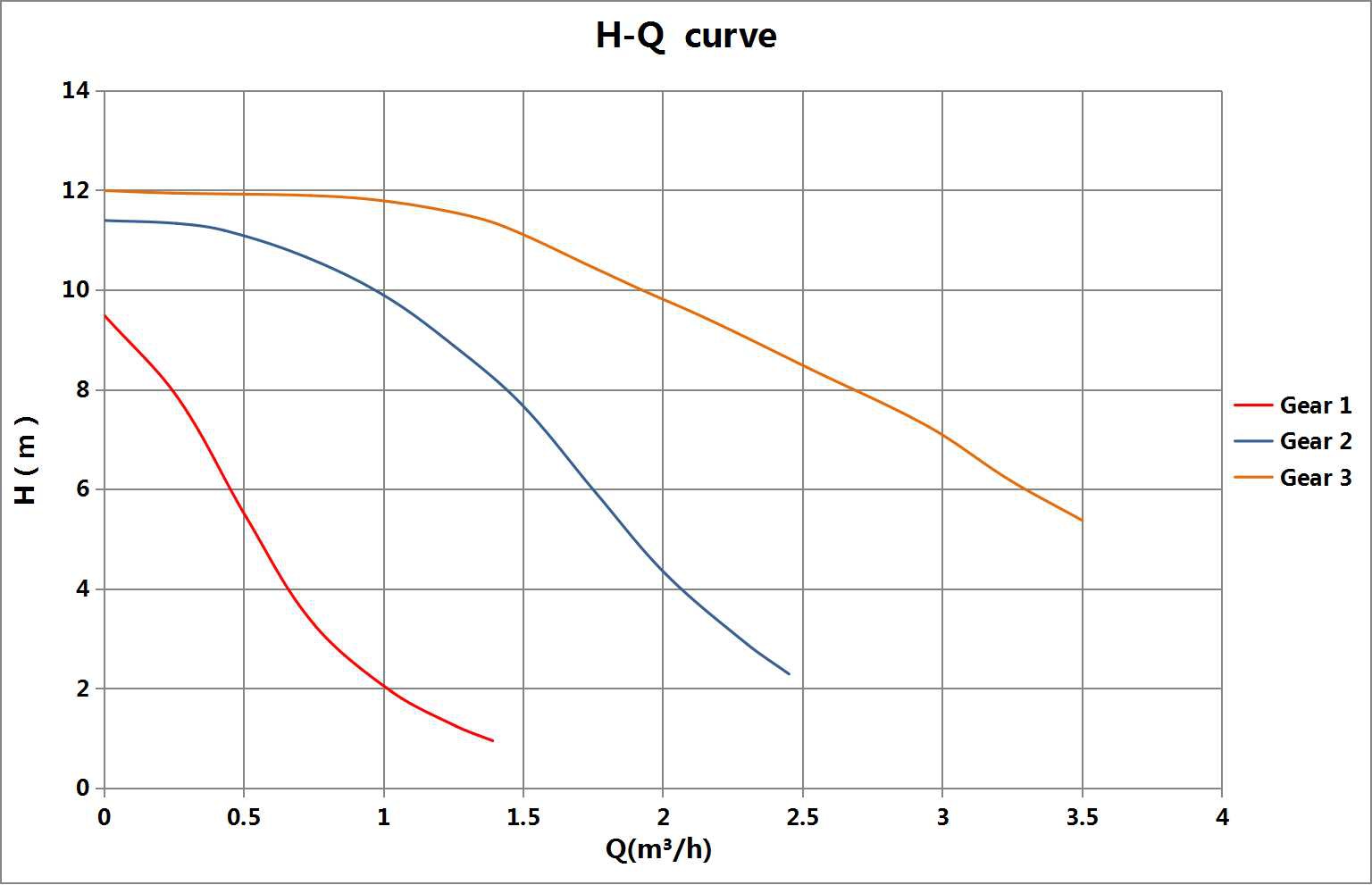

Basic 15-12S-150 3010100100061 12 3.5 270 50 15 230
Basic 25-8S-180 3010100100345 8 5.2 245 50 25 230
Basic 25-8SB-180 3010100100361 8 5.2 245 50 25 230

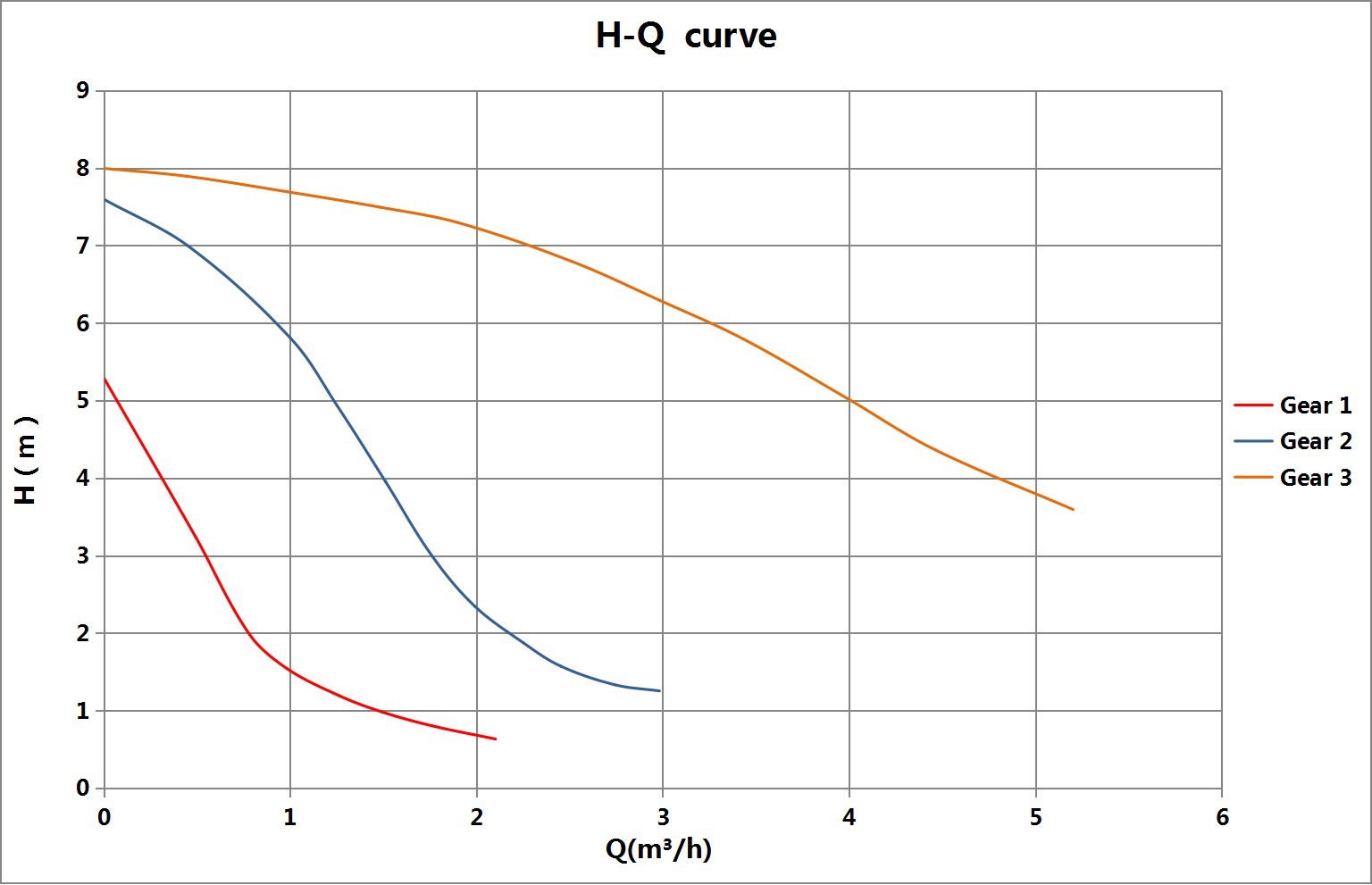

Basic 25-8SQ-180 3010100100376 8 5.2 245 50 25 230
Basic 25-8SN-180 3010100100368 8 5.2 245 50 25 230
Basic 32-8S-180 3010100100474 8 8 245 50 32 230

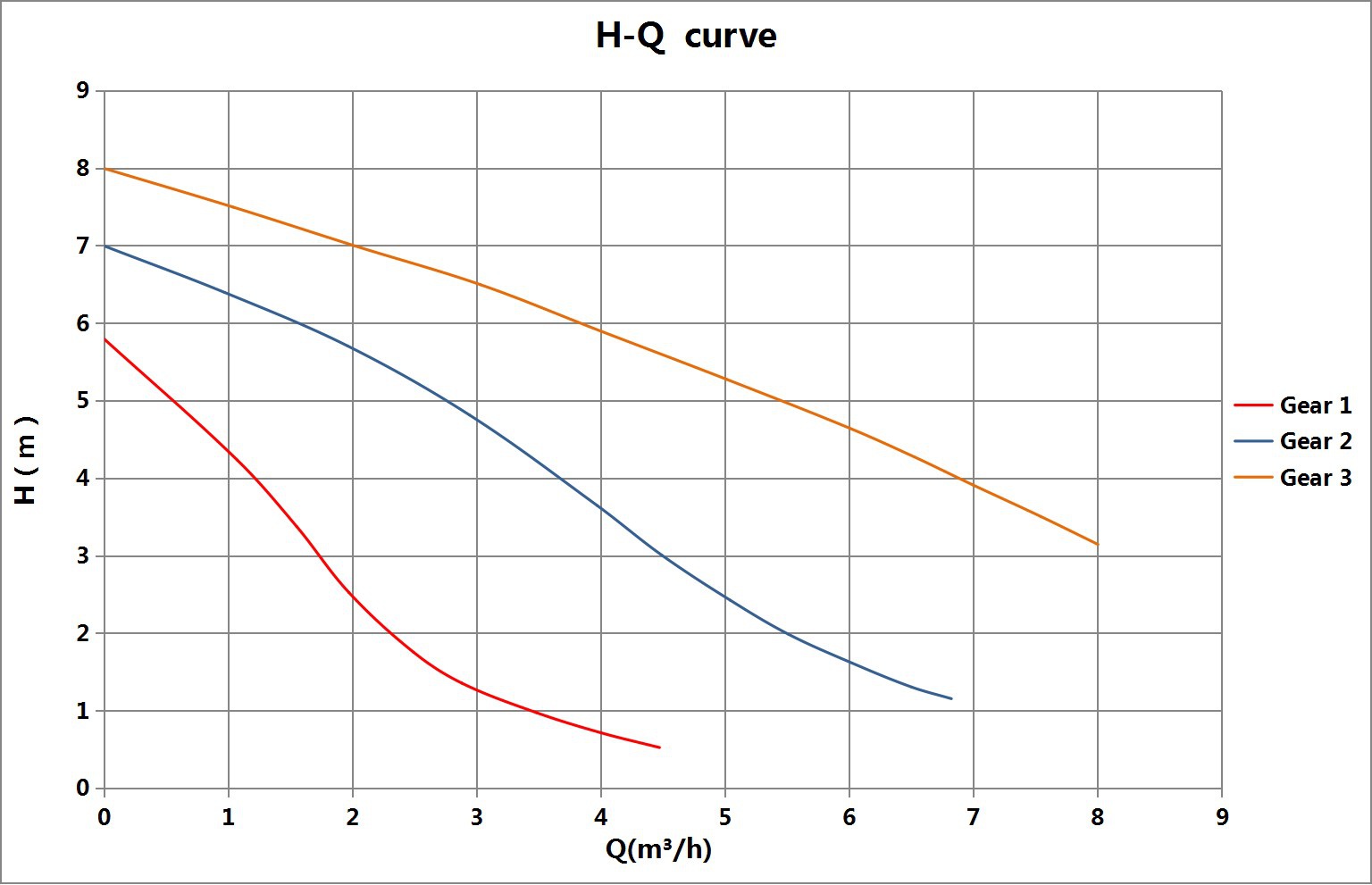

Basic 32-8SN-180 3010100100489 8 8 245 50 32 230
Basic 32-8SF-200 3010100100481 8 8 245 50 32 230

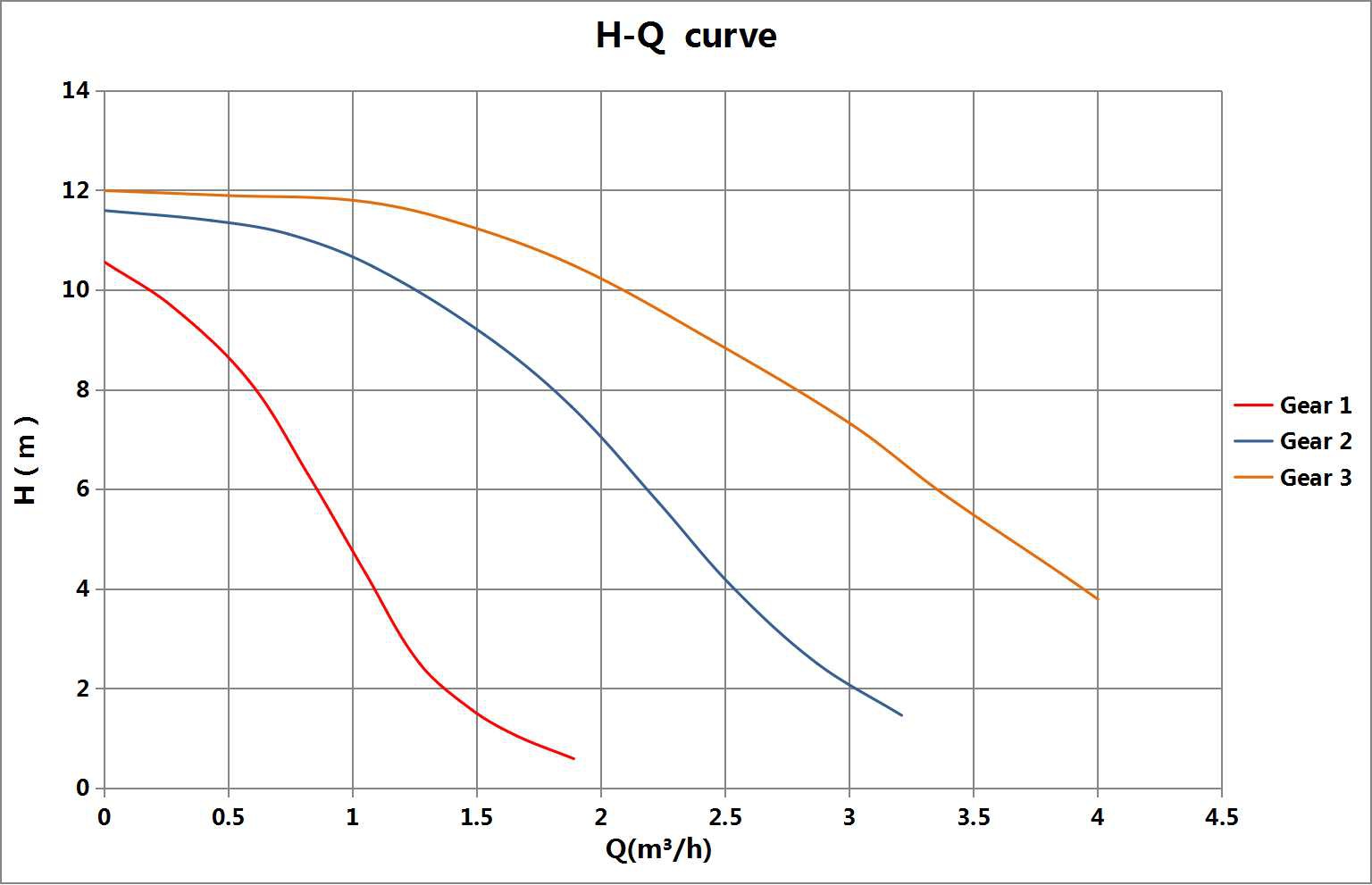

Basic 20-12S-150 3010100100217 12 4 270 50 20 230
Basic 20-12S-180 3010100100220 12 4 270 50 20 230
Basic 20-12SB-180 3010100100222 12 4 270 50 20 230
Basic 25-12S-180 3010100100425 12 4 270 50 25 230
Basic 25-12SB-180 3010100100435 12 4 270 50 25 230
Basic 25-9-180 3010100100389 9 6 300 50 25 230

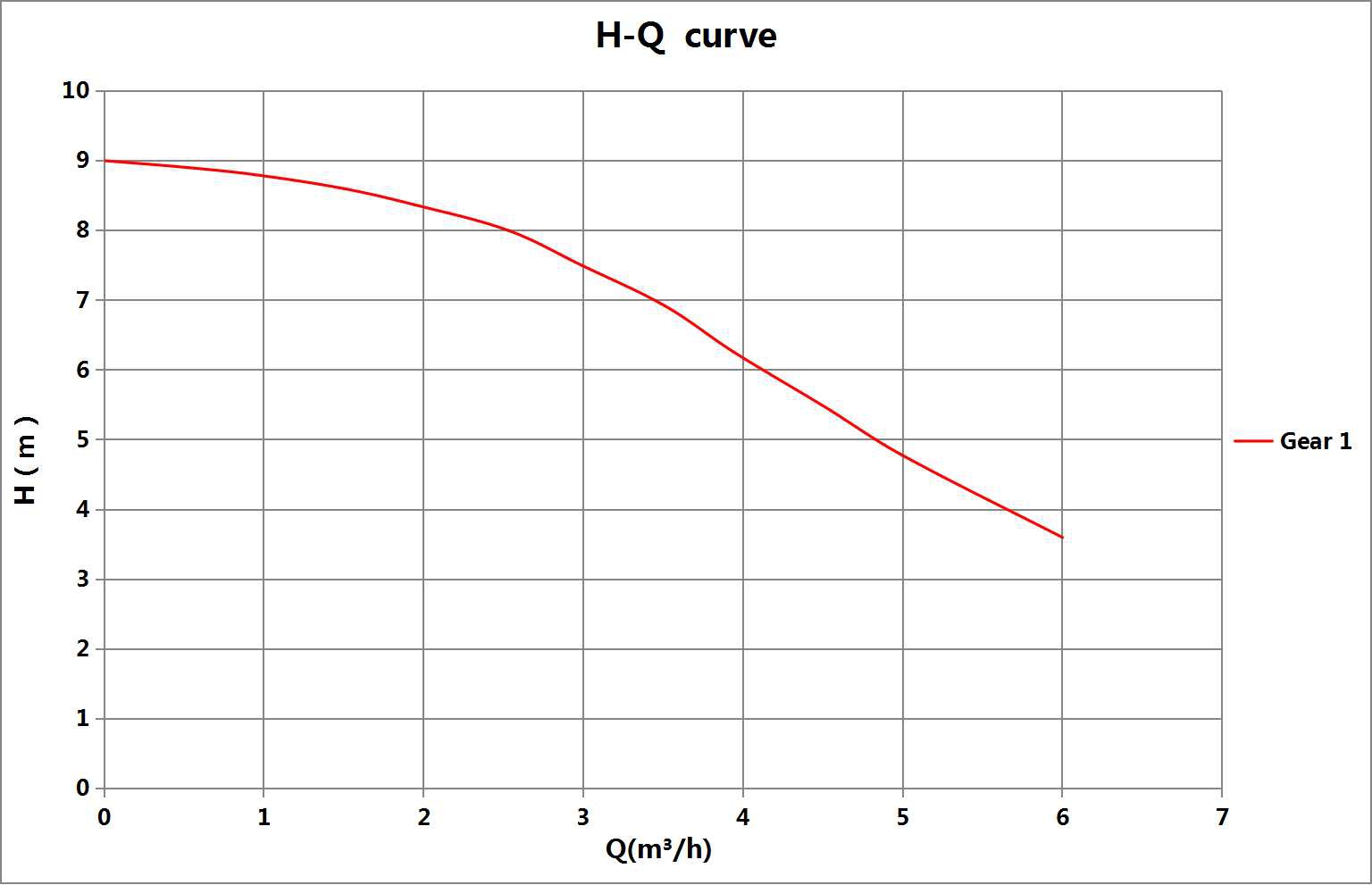

Basic 25-9N-180 3010100100388 9 6 300 50 25 230
Basic 32-9-180 3010100100499 9 8 300 50 32 230
Basic 32-9-220 3010100100494 9 8 300 50 32 230

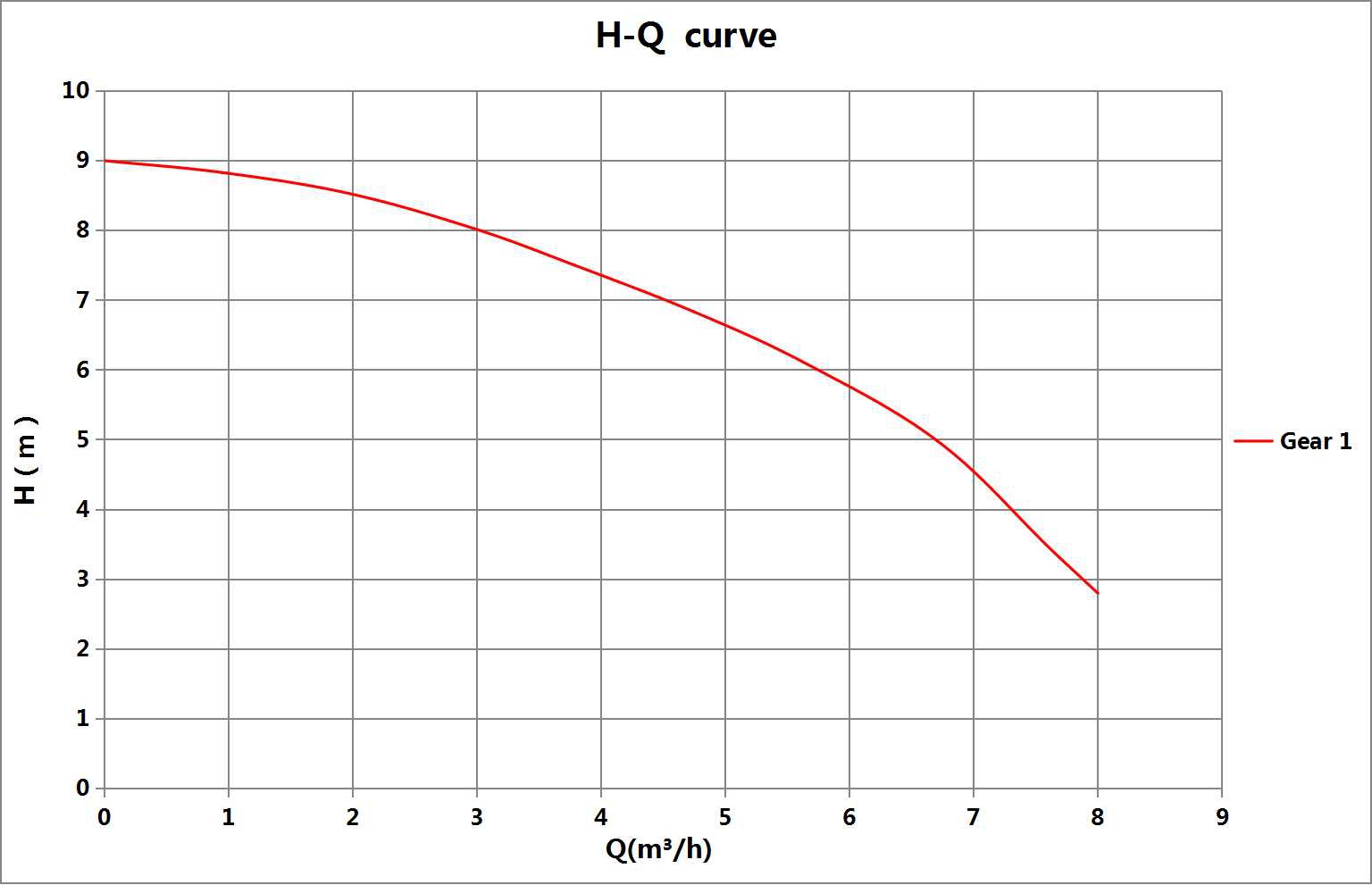

Basic 32-9F-220 3010100100496 9 8 300 50 32 230
Basic 25-12-180 3010100100414 12 6.5 500 50 25 230

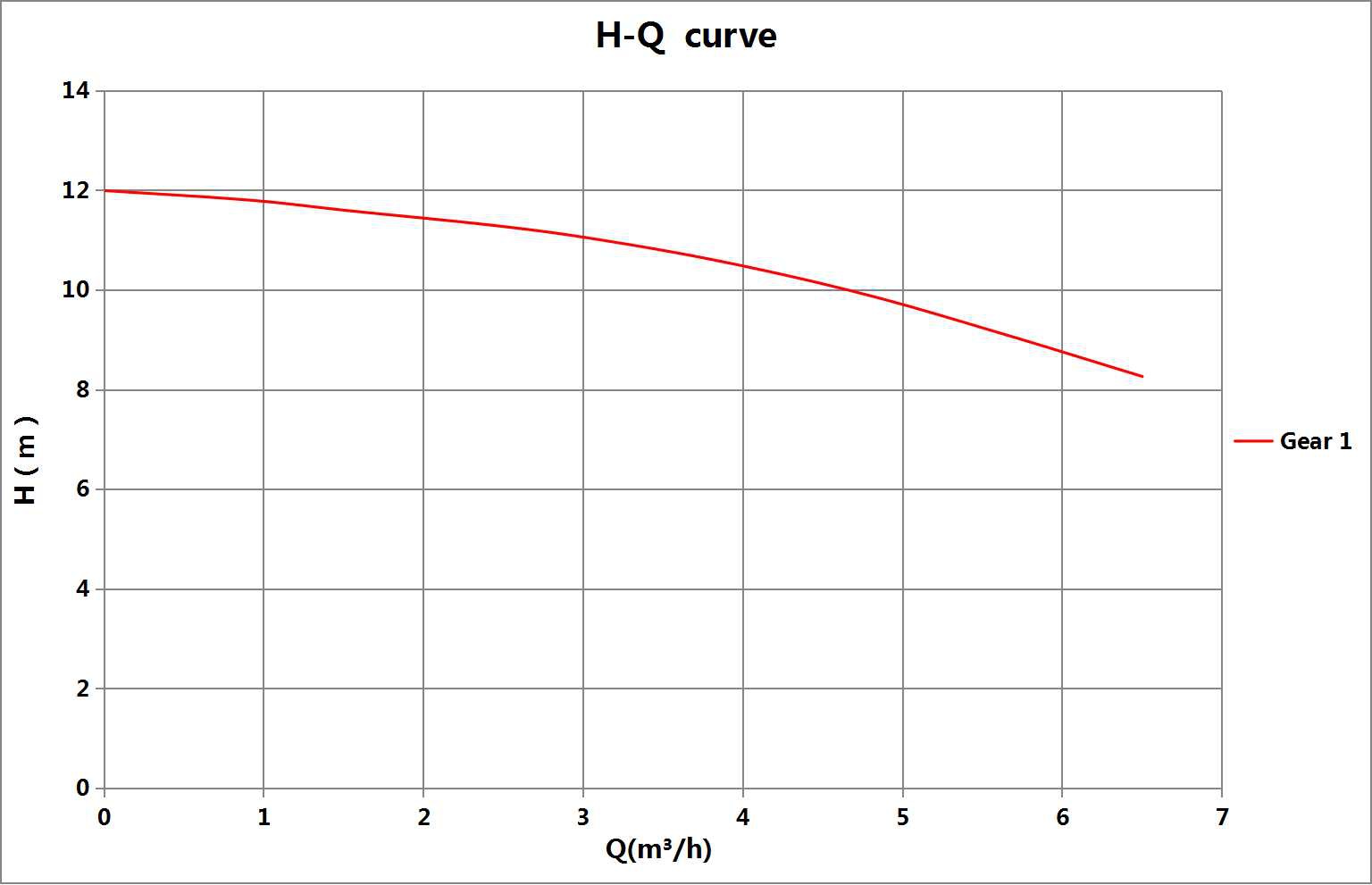

Basic 25-12N-180 3010100100417 12 6.5 500 50 25 230
Basic 32-12-180 3010100100508 12 10 500 50 32 230

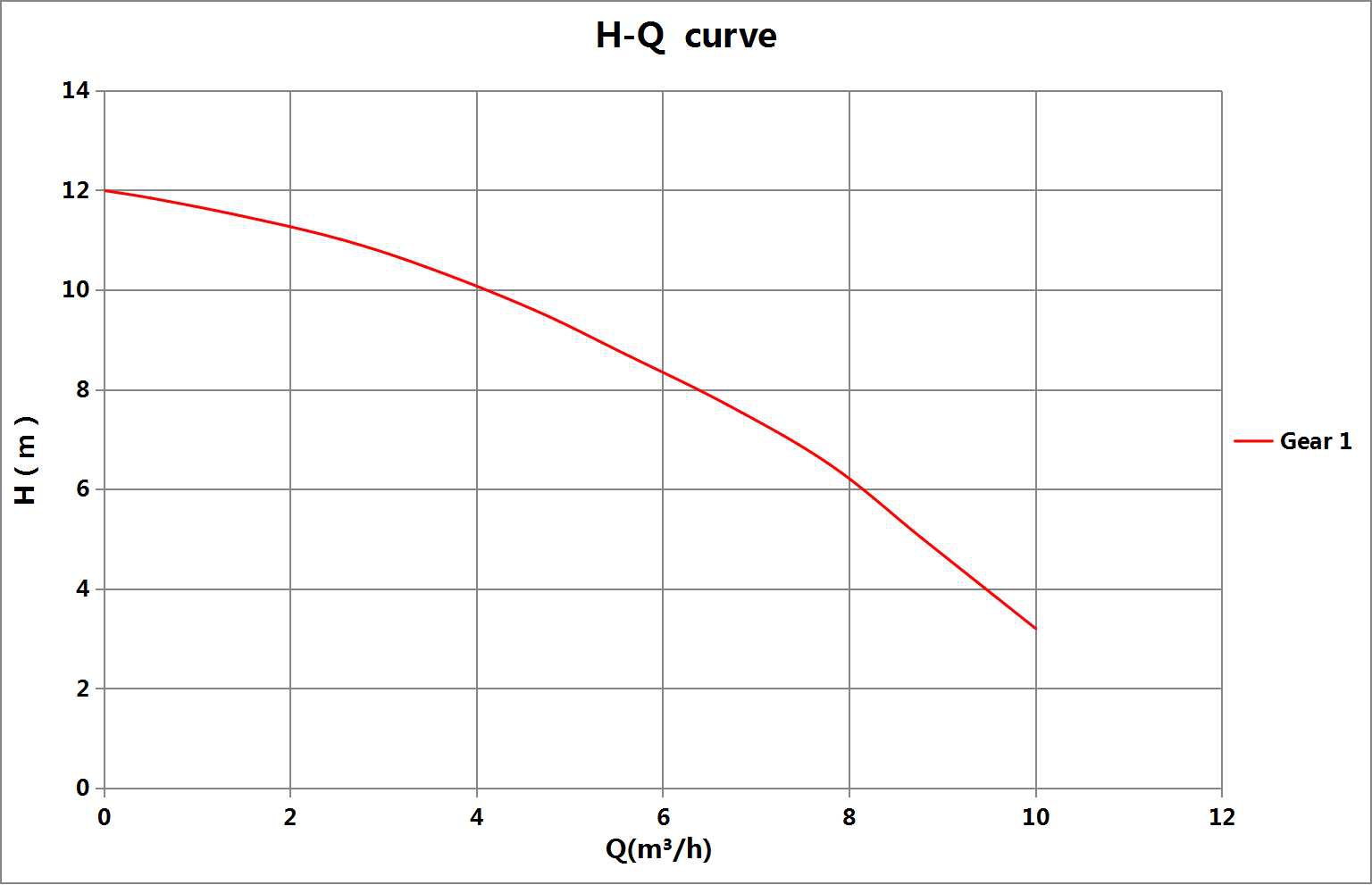

Basic 32-12-220 3010100100503 12 10 500 50 32 230
Basic 32-12F-220 3010100100506 12 10 500 50 32 230

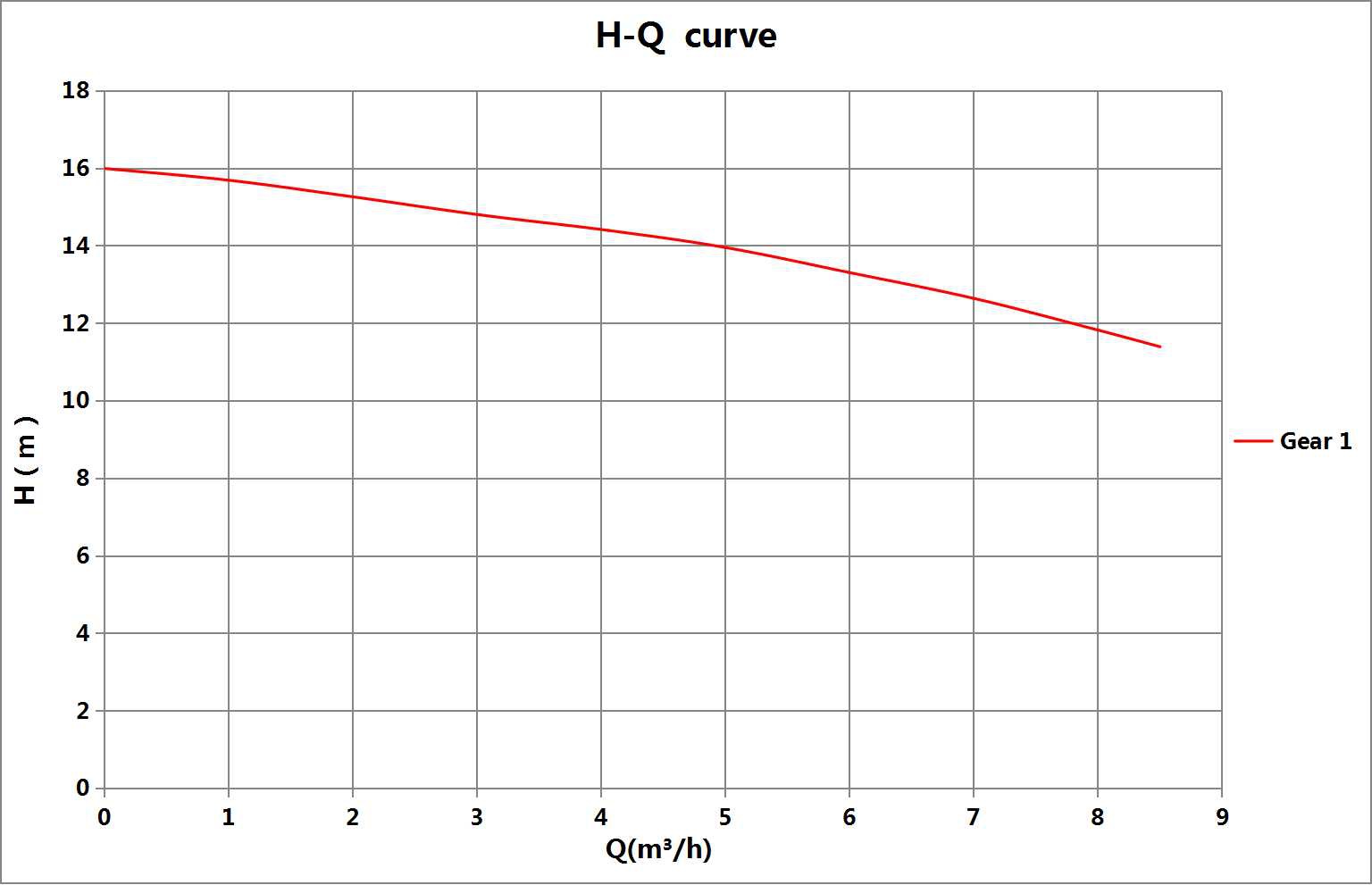

Basic 25-16-230 3010100100440 16 9 700 50 25 230
Basic 32-16-230 3010100100512 16 12 700 50 32 230

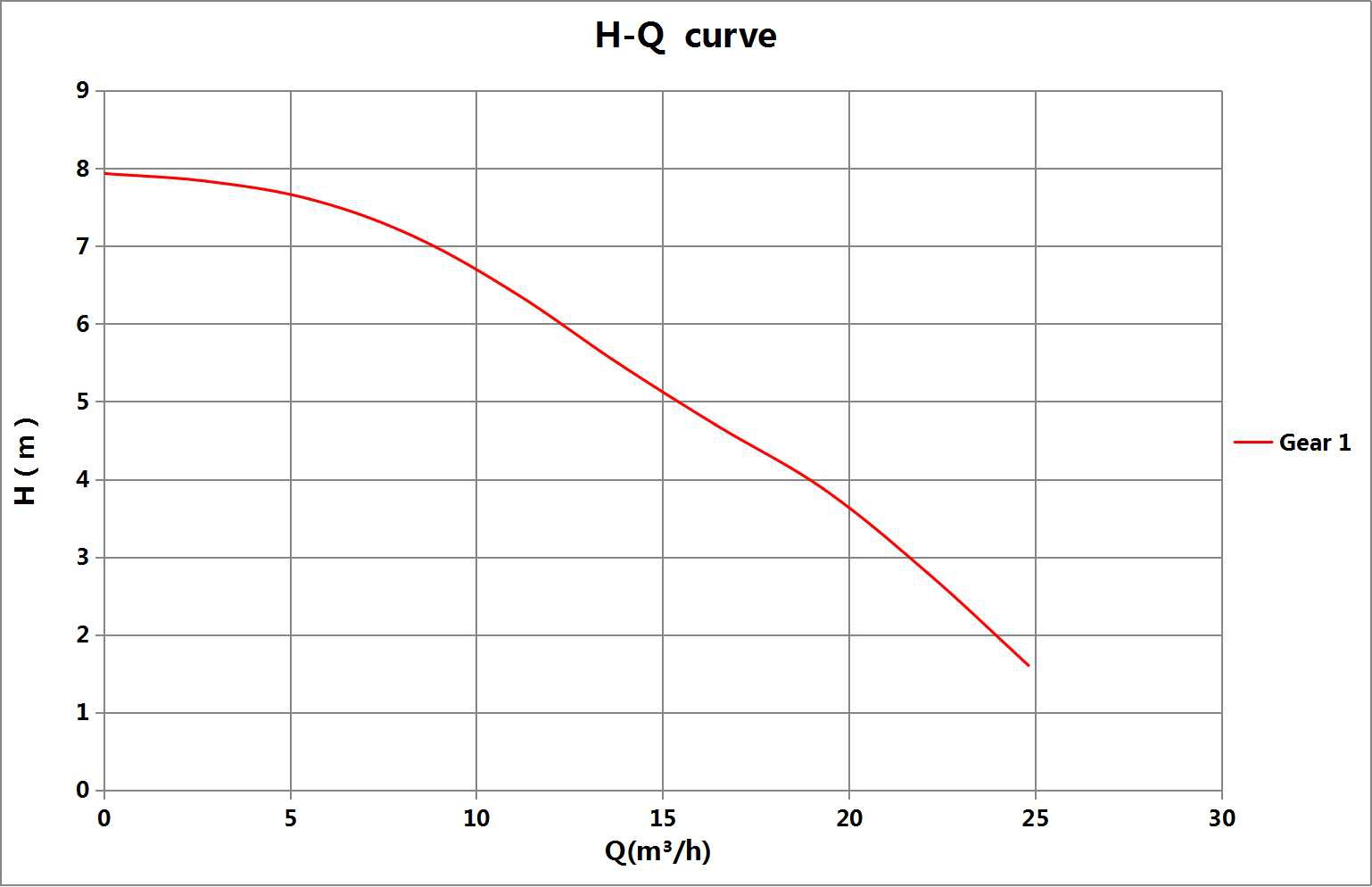

Basic 65-8F Pro 3010100100606 8 25 700 50 65 230

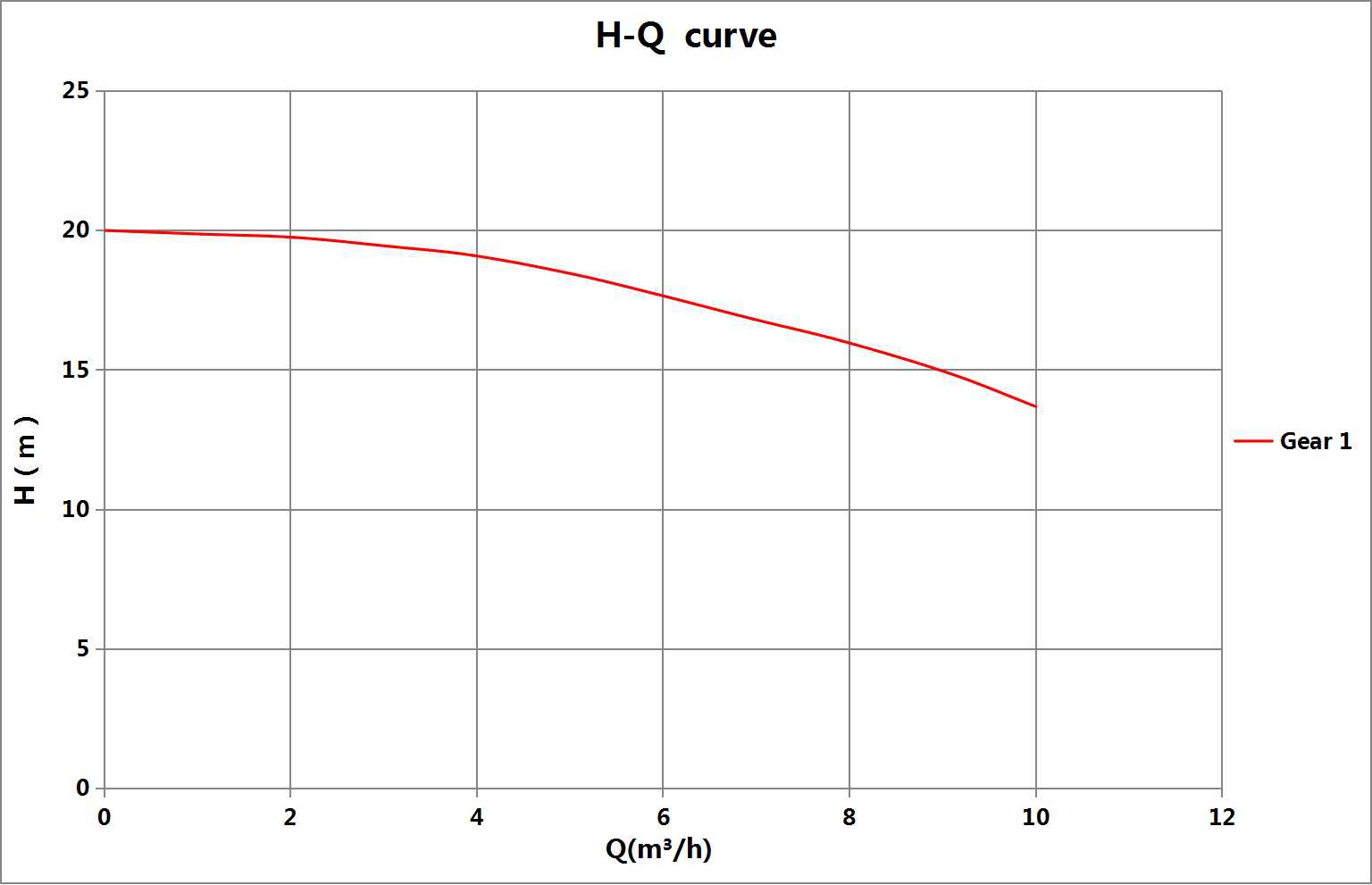

Basic 25-20-230 3010100100444 20 10 1000 50 25 230

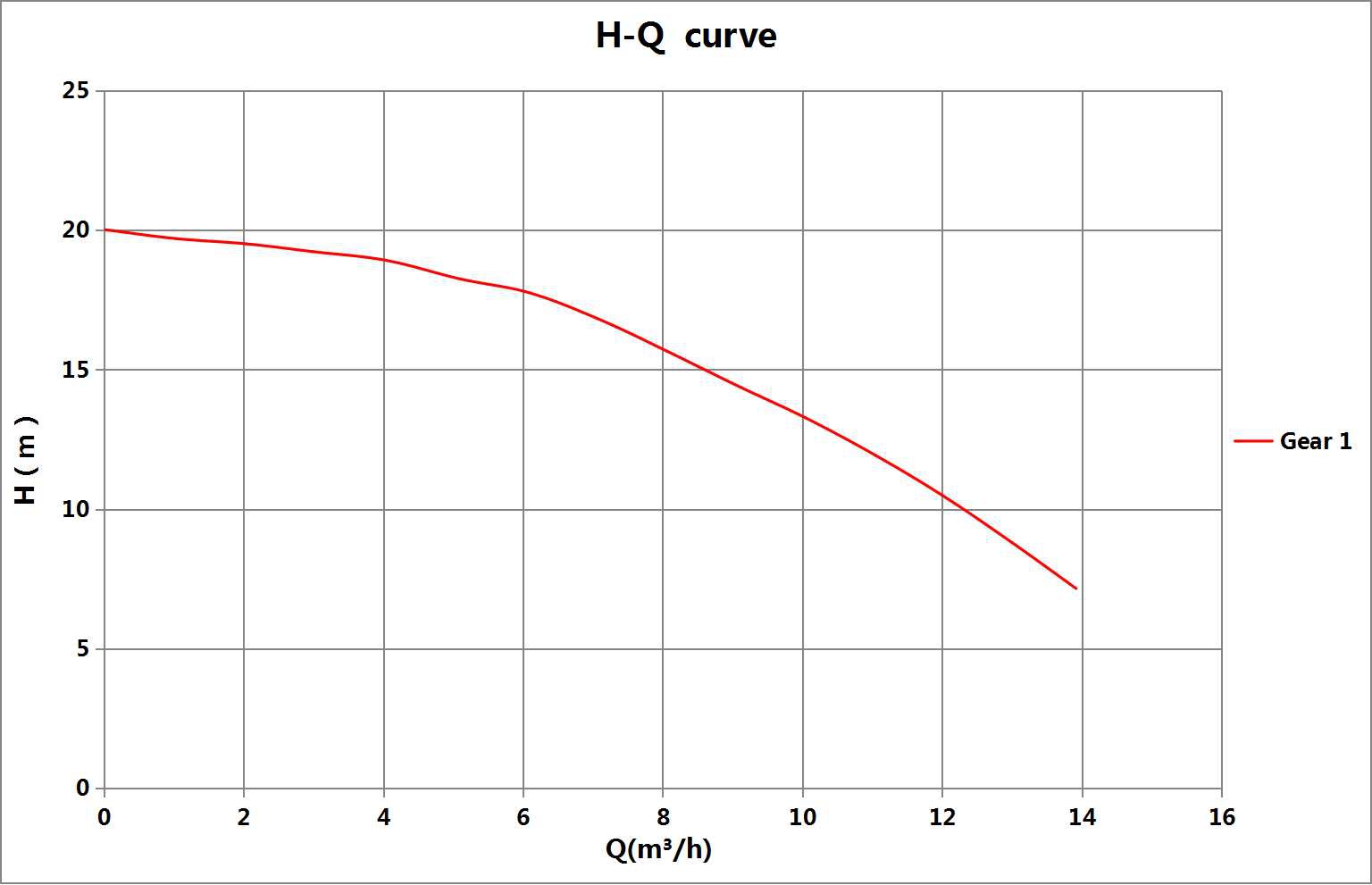

Basic 32-20-230 3010100100513 20 13 1000 50 32 230

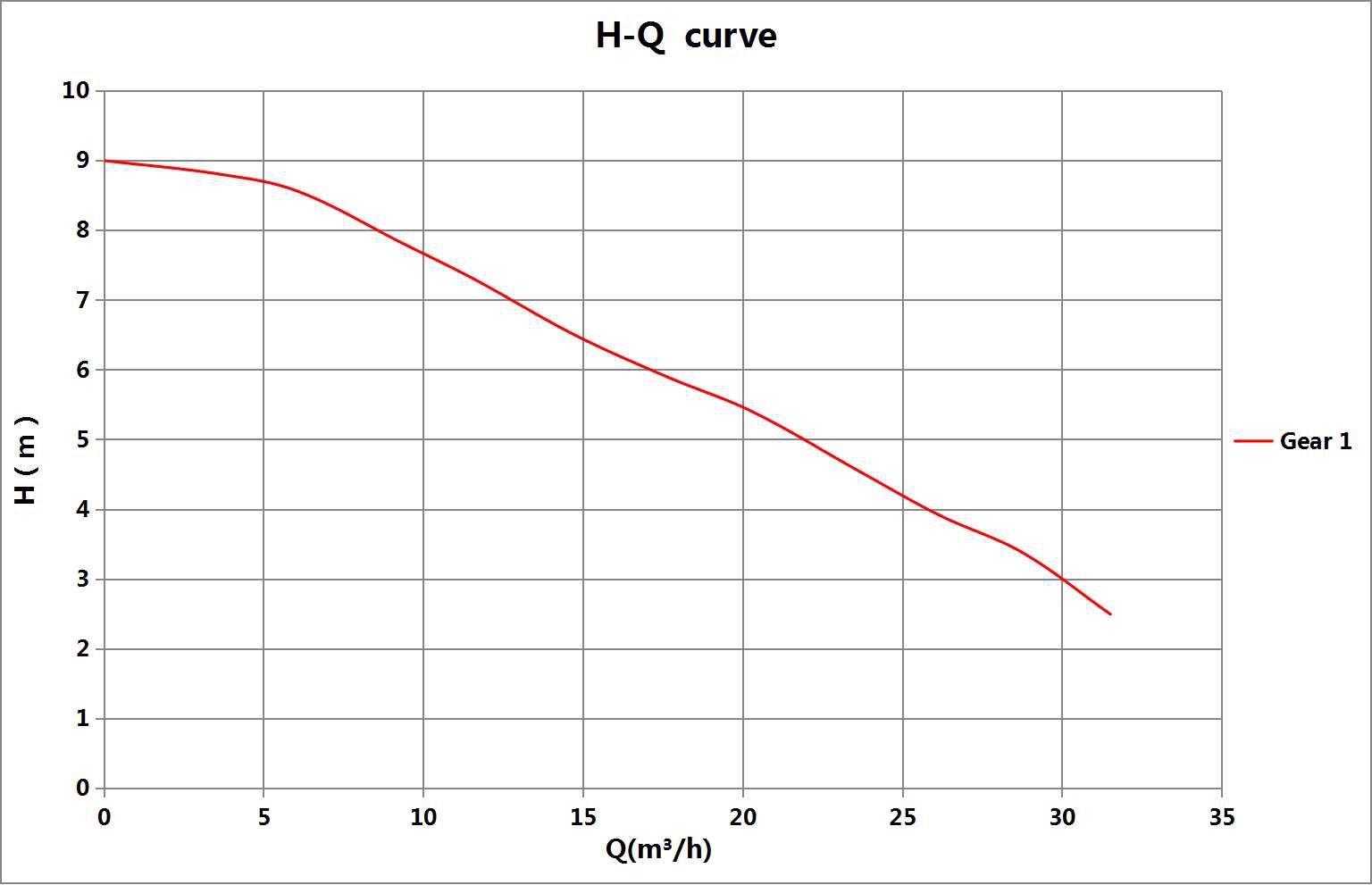

Basic 65-10F Pro 3010100100551 10 32 1000 50 65 230
Basic 80-10F Pro 3010100100608 10 35 1300 50 80 230

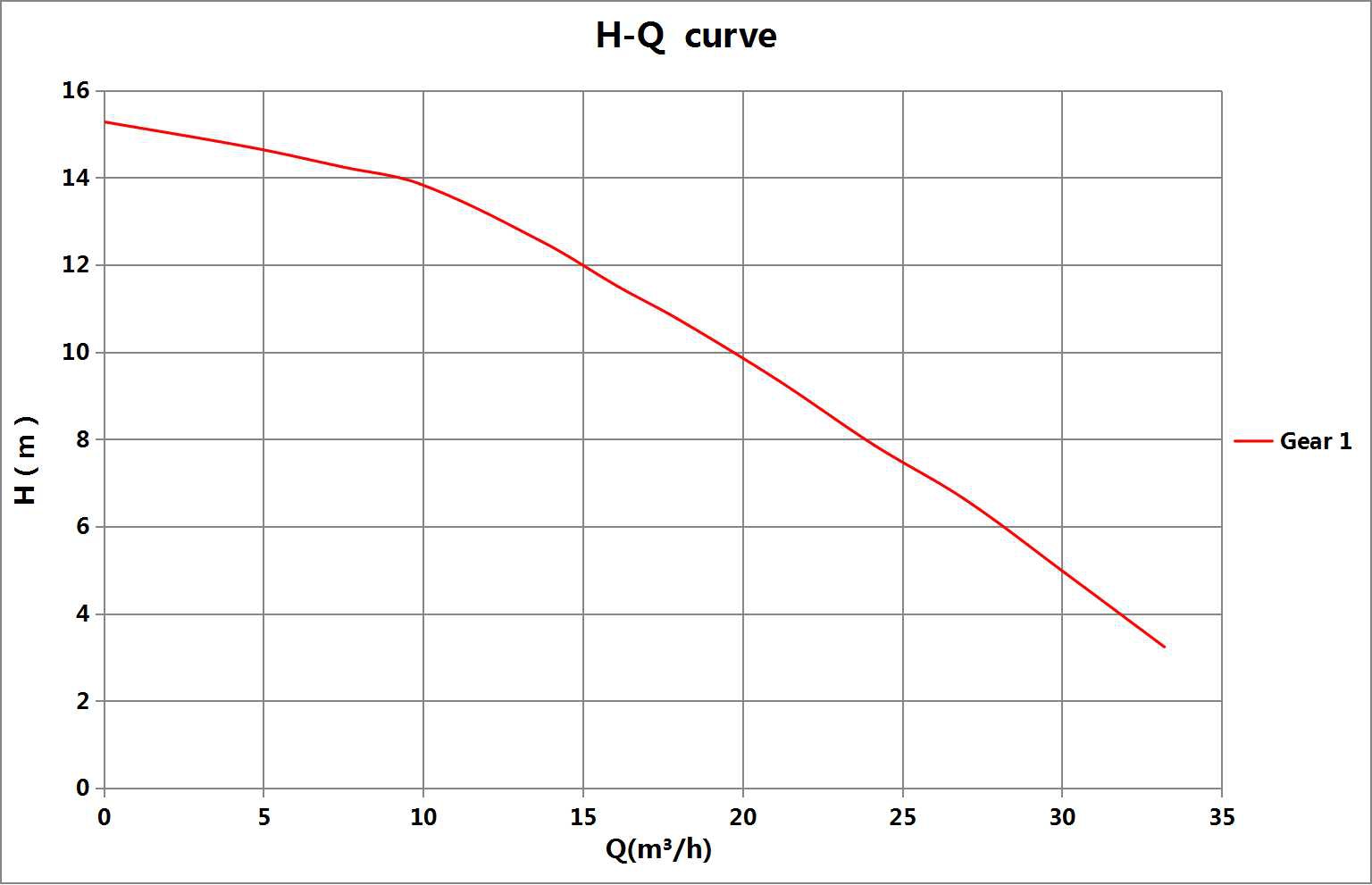

Basic 50-16F Pro 3010100100609 16 30 1300 50 50 230
Basic 50-20F-280 3010100100545 20 20 1300 50 50 230
Basic 65-12F-300 Pro 3010100100552 12 40 1300 50 65 230

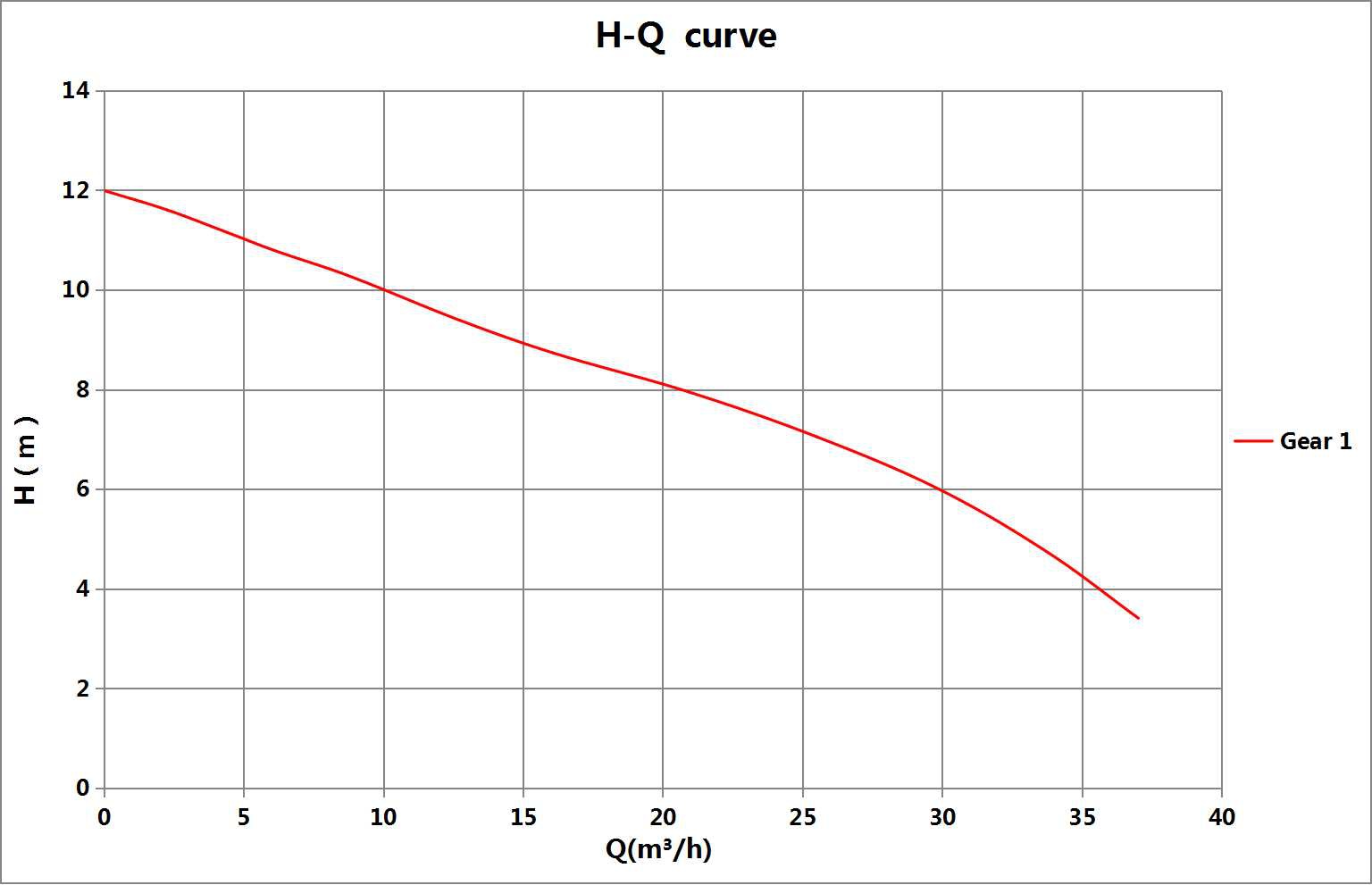

Basic 65-12F-340 Pro 3010100100611 12 36 1300 50 65 230

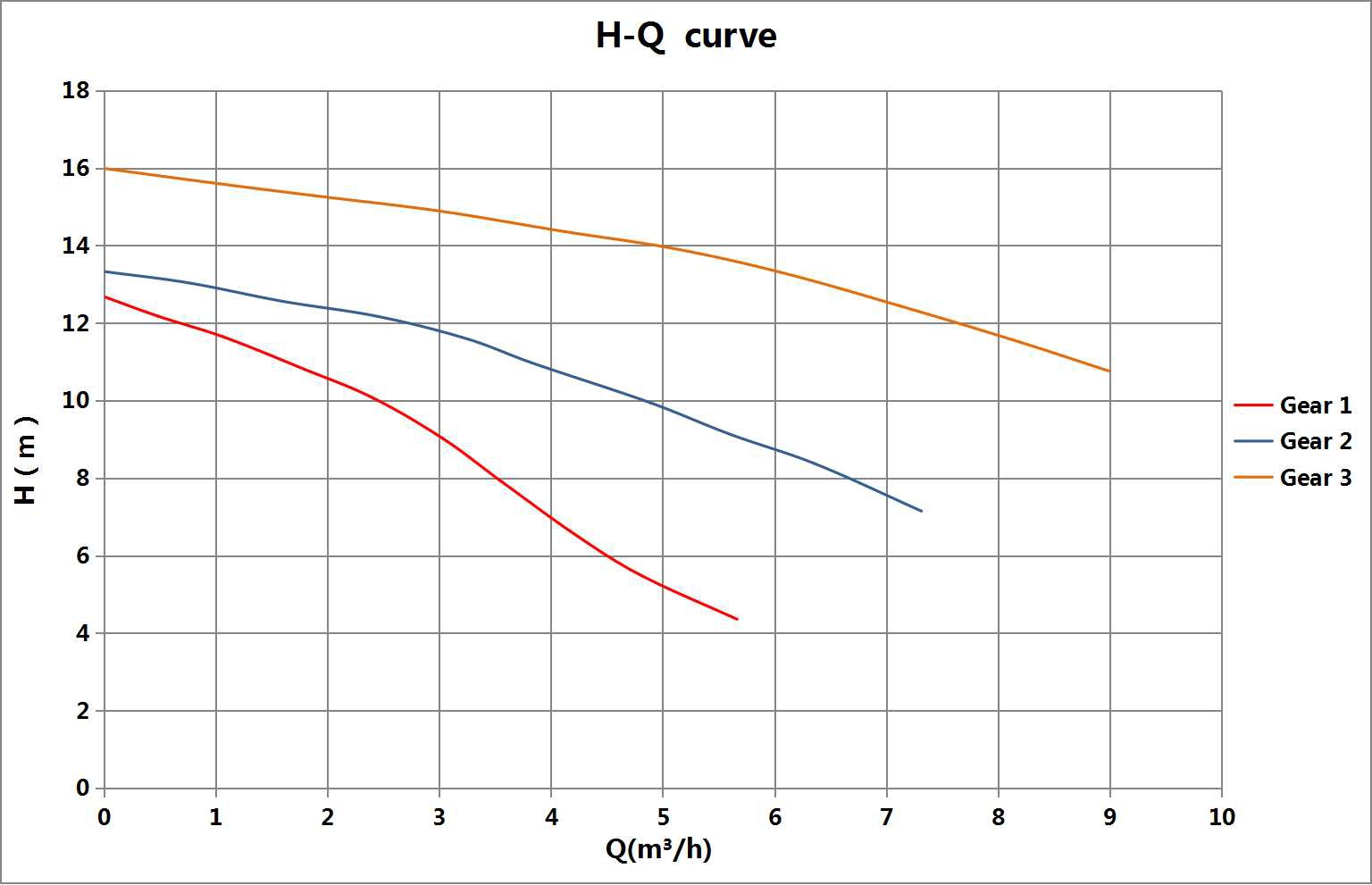

Basic 25-16S Pro 3010100200010 16 9 700 50 25 380

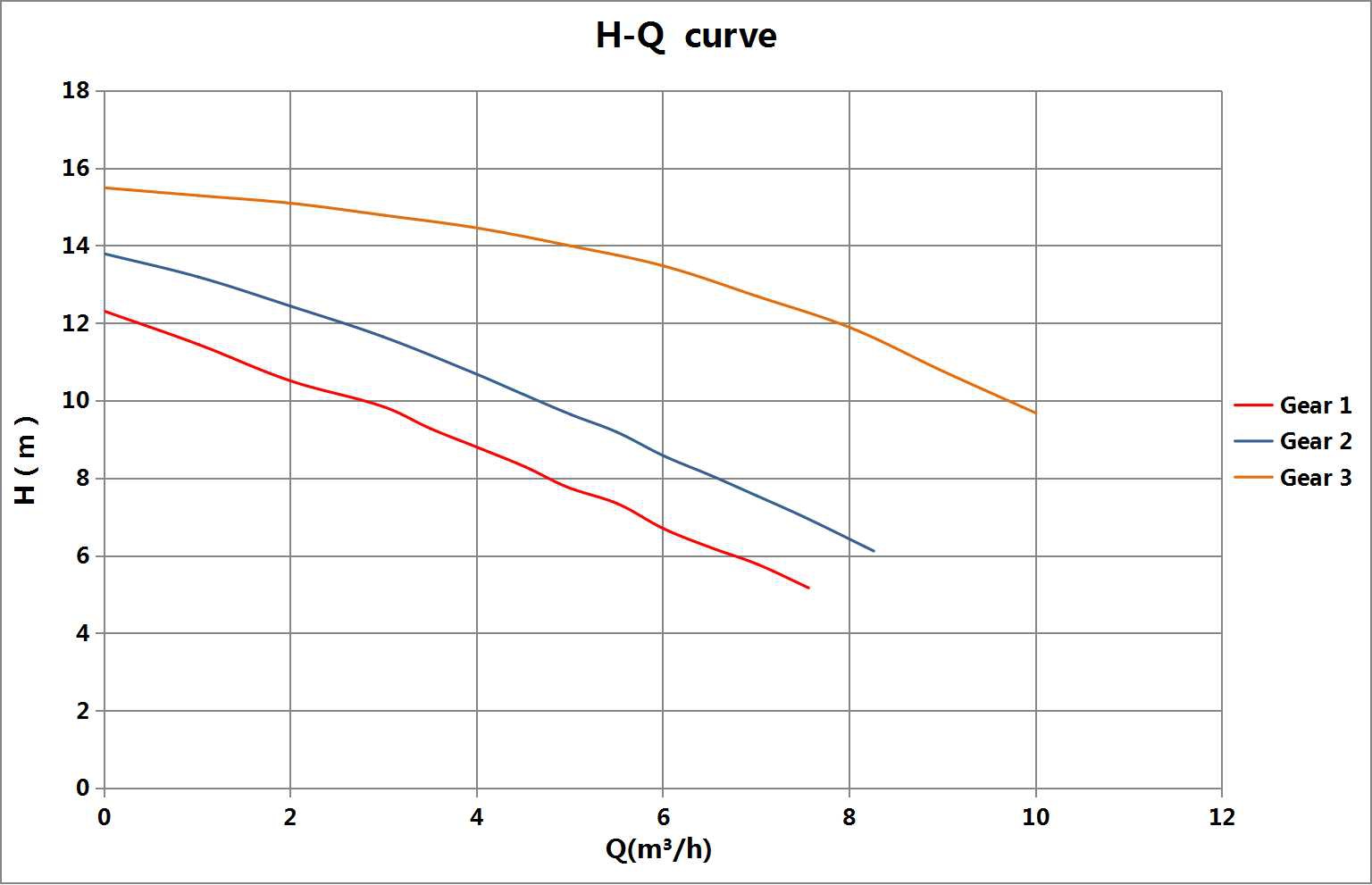

Basic 32-16S-230 3010100200070 16 12 700 50 32 380
Basic 40-12SF Pro 3010100200063 14 11 700 50 40 380
Basic 25-20S-230 3010100200012 20 10 1000 50 25 380

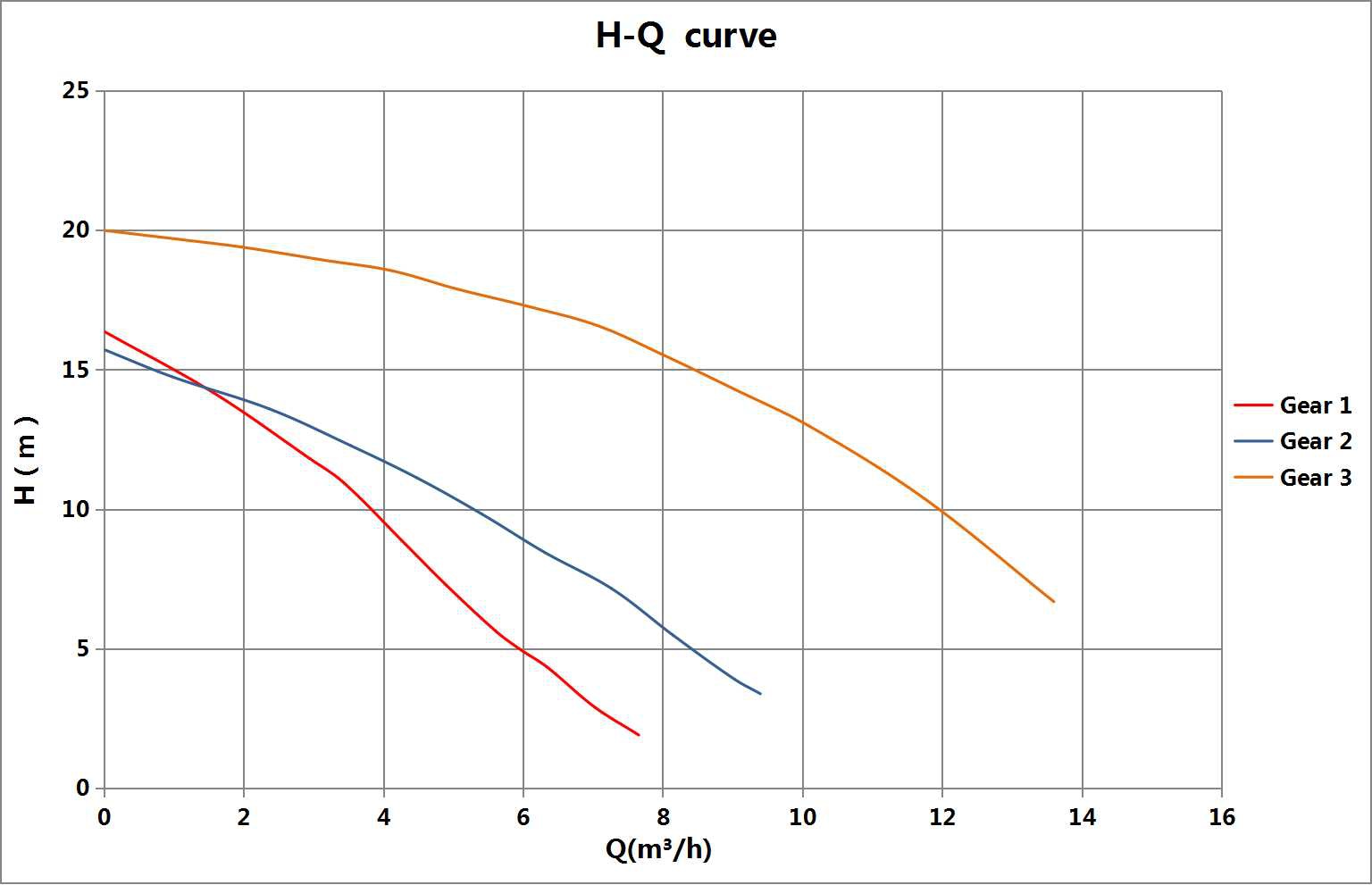

Basic 32-20S-230 3010100200071 20 13 1000 50 32 380

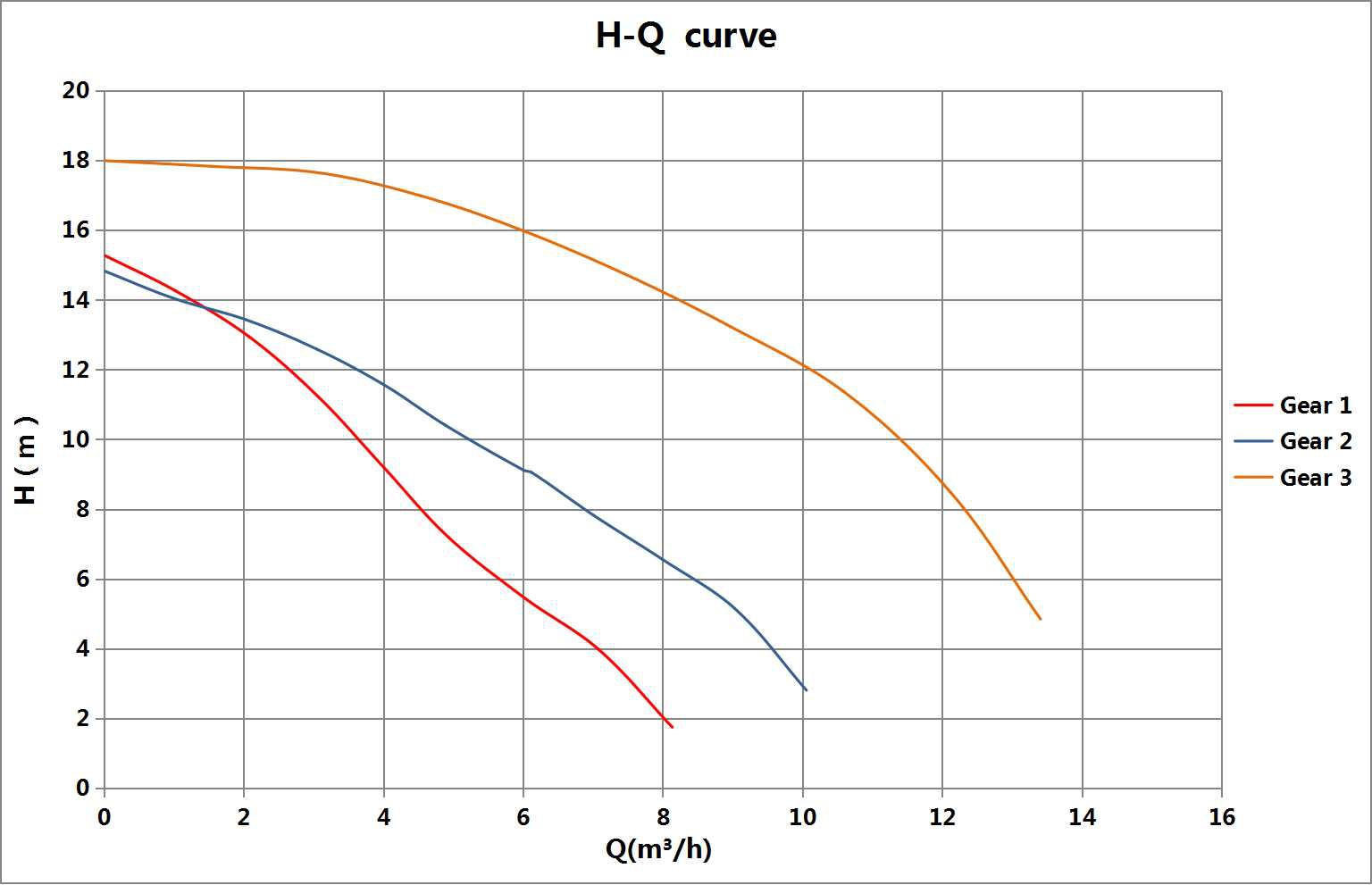

Basic 40-16SF-250 3010100200027 18 13 1000 50 40 380

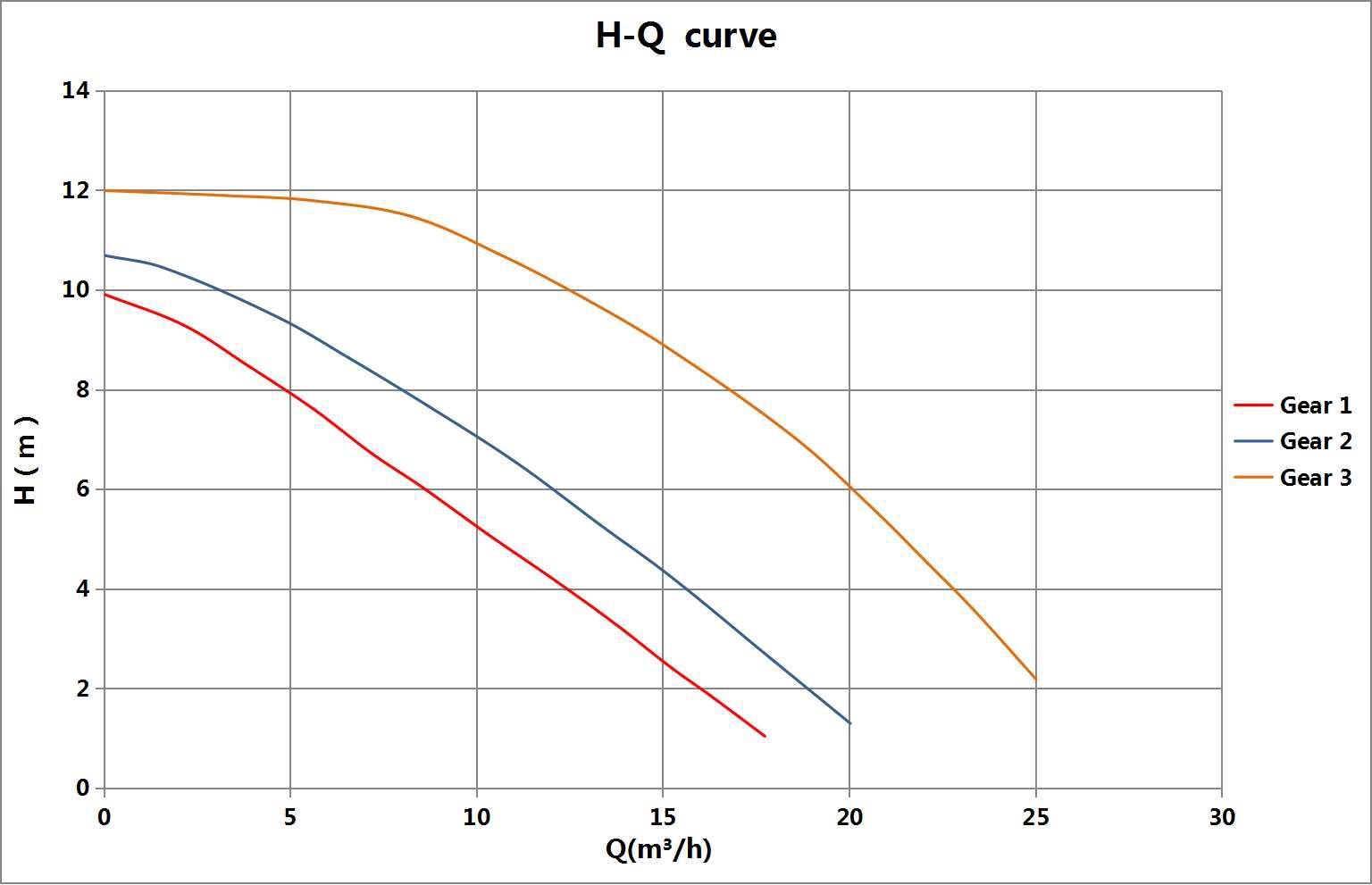

Basic 50-12SF-280 3010100200029 12 25 1000 50 50 380

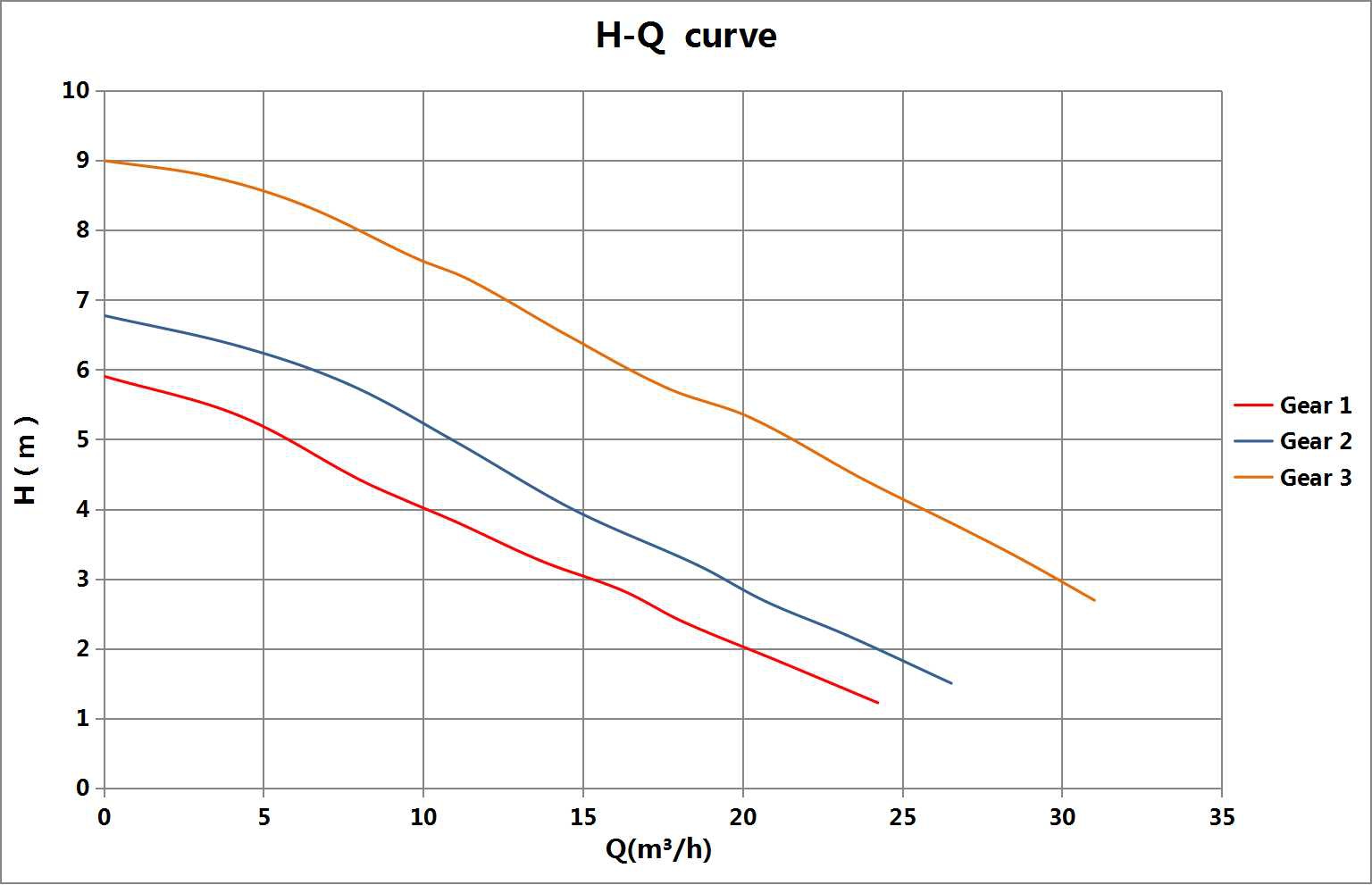

Basic 65-10SF-300 3010100200042 10 32 1000 50 65 380
Basic 80-10SF-360 3010100200056 10 32 1000 50 80 380
Basic 50-16SF-280 3010100200032 17 25 1300 50 50 380

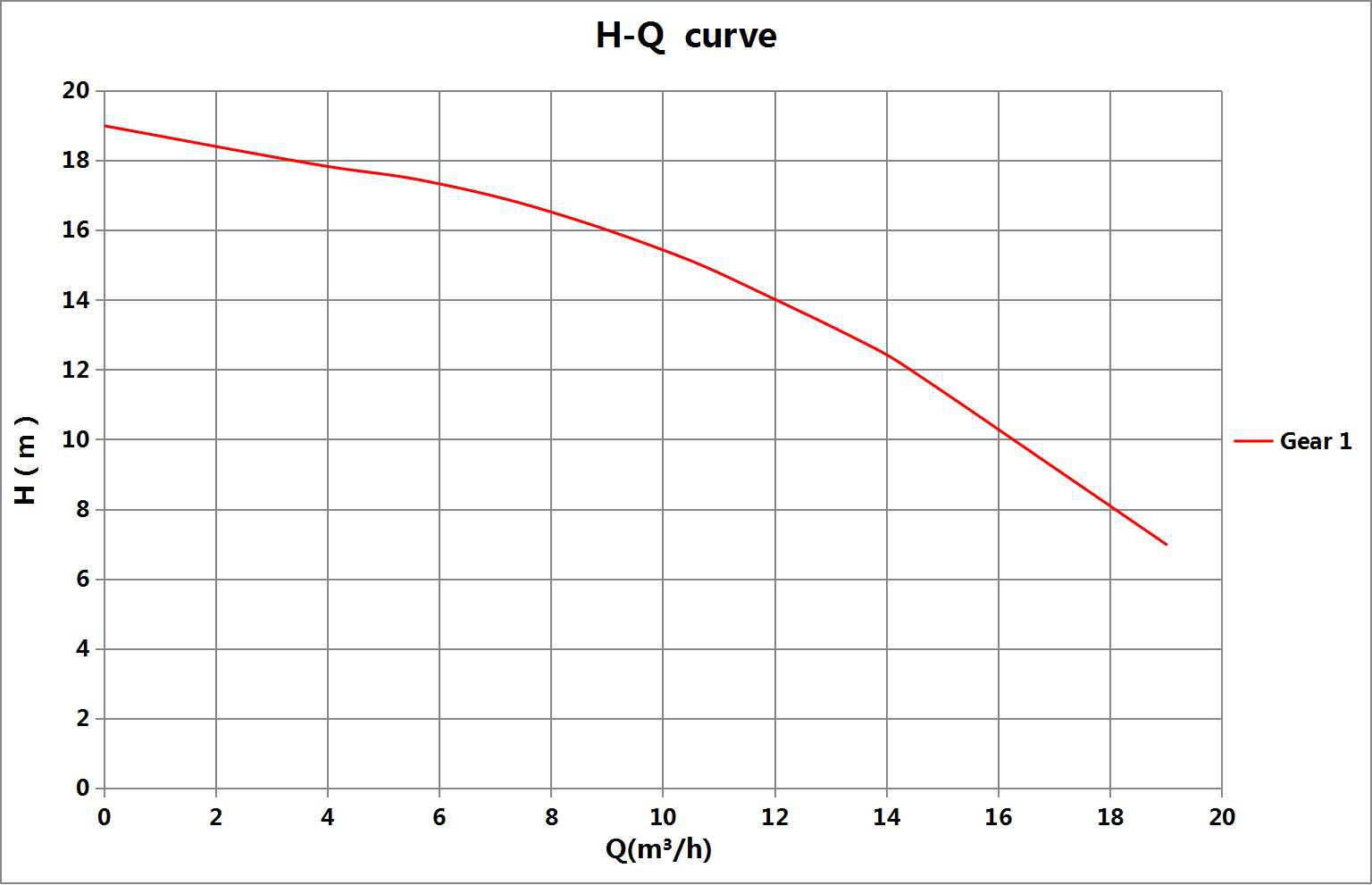

Basic 50-20SF-280 3010100200034 20 20 1300 50 50 380

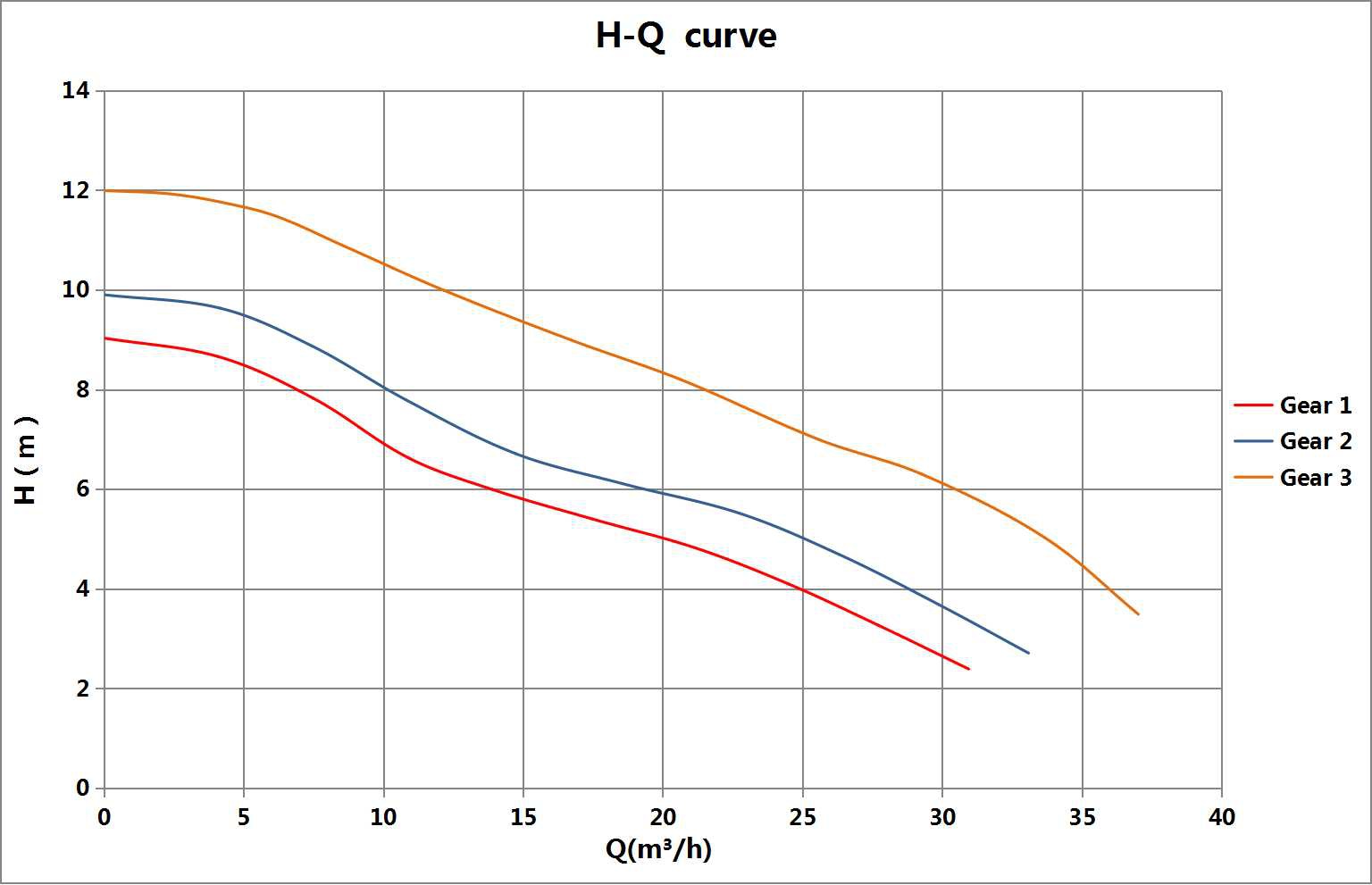

Basic 65-12SF-300 3010100200047 12 40 1300 50 65 380
Basic 65-12SF-340 3010100200048 12 40 1300 50 65 380

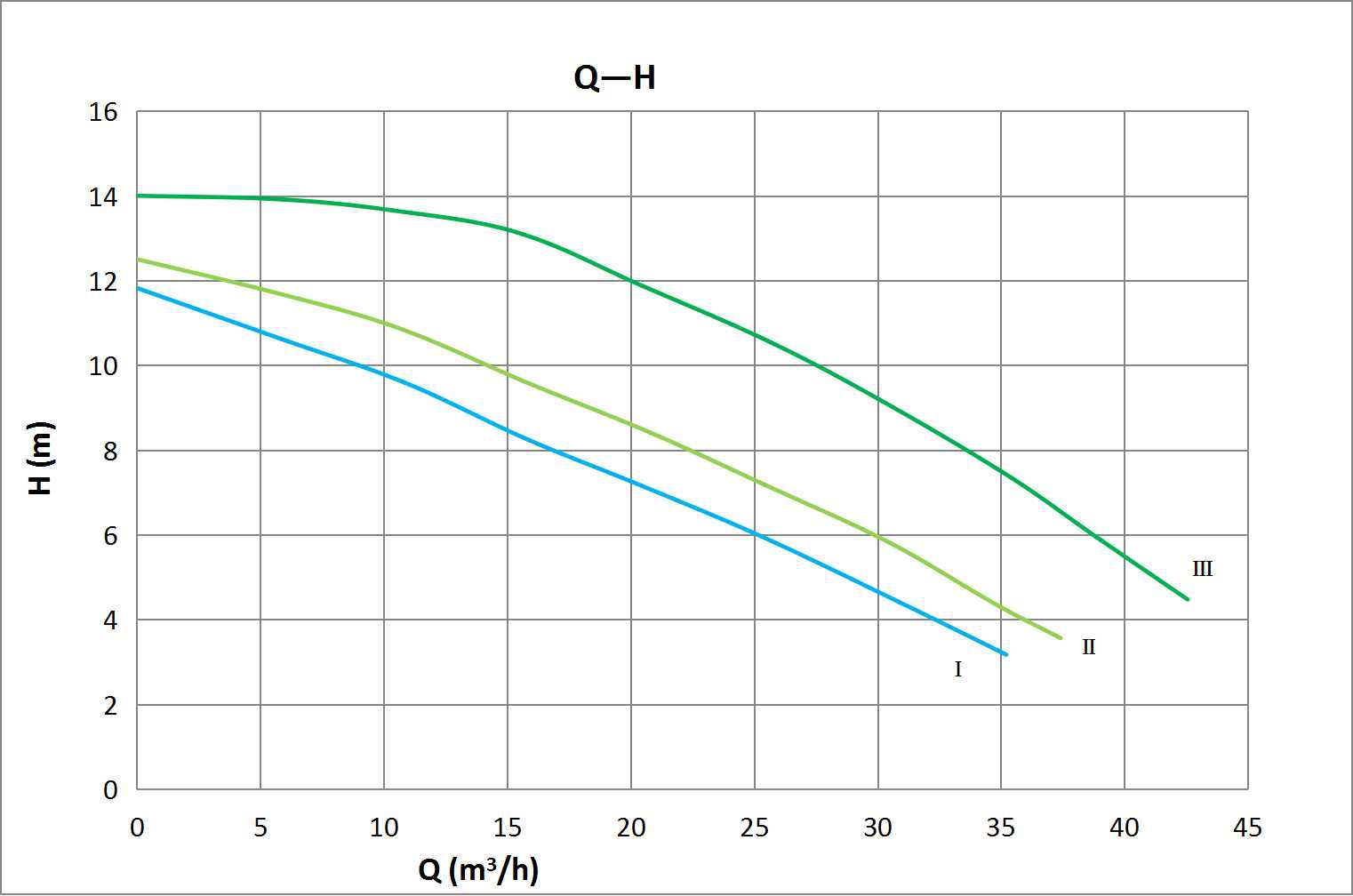

Basic 80-12SF-360 3010100200058 12 35 1300 50 80 380

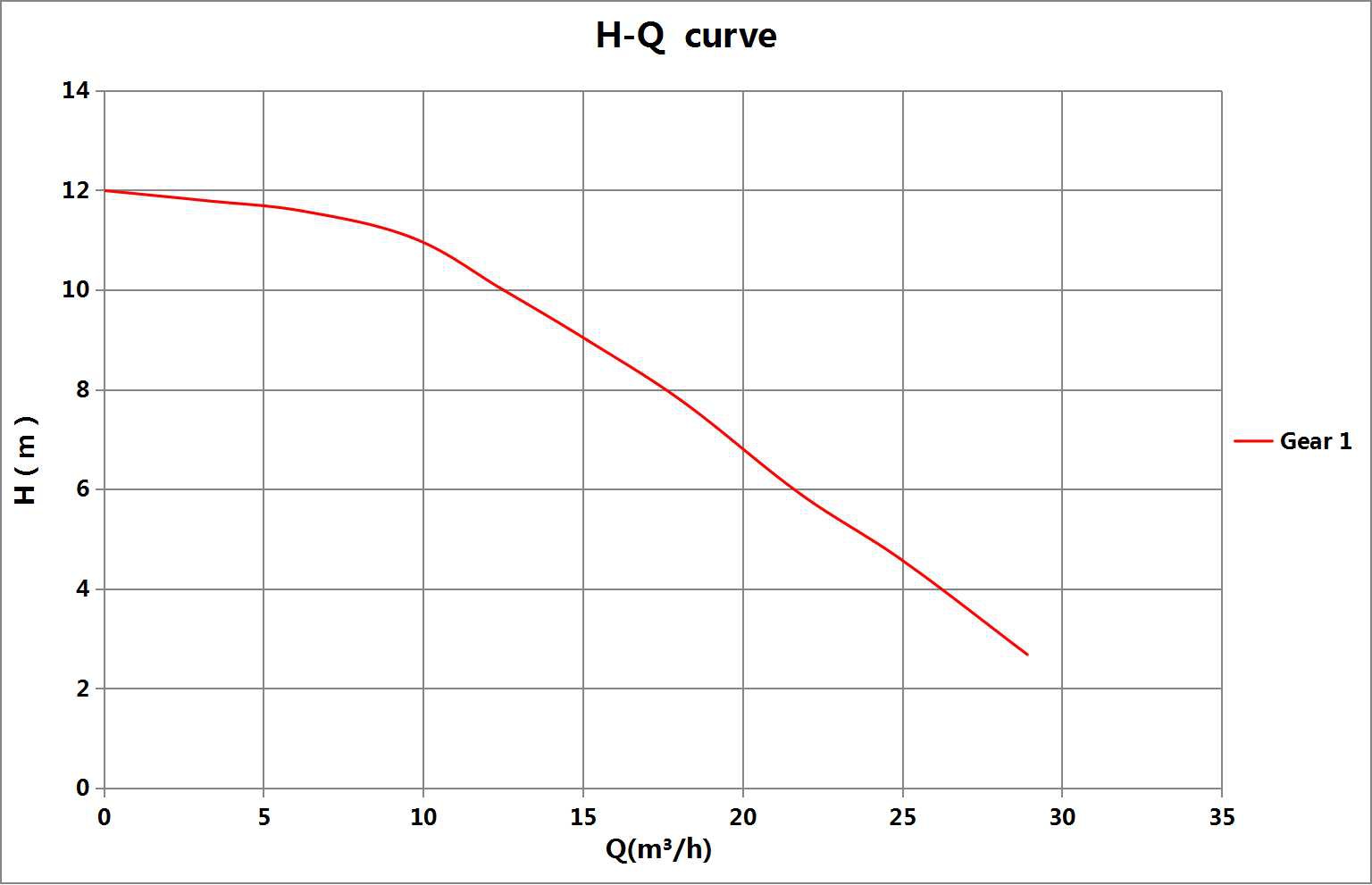

Basic 50-12F Pro 3010100100542 12 28 1000 50 50 230
Basic 50-16SF Pro 3010100200033 16 30 1300 50 50 380
Basic 50-20SF Pro 3010100200036 17 35 1500 50 50 380

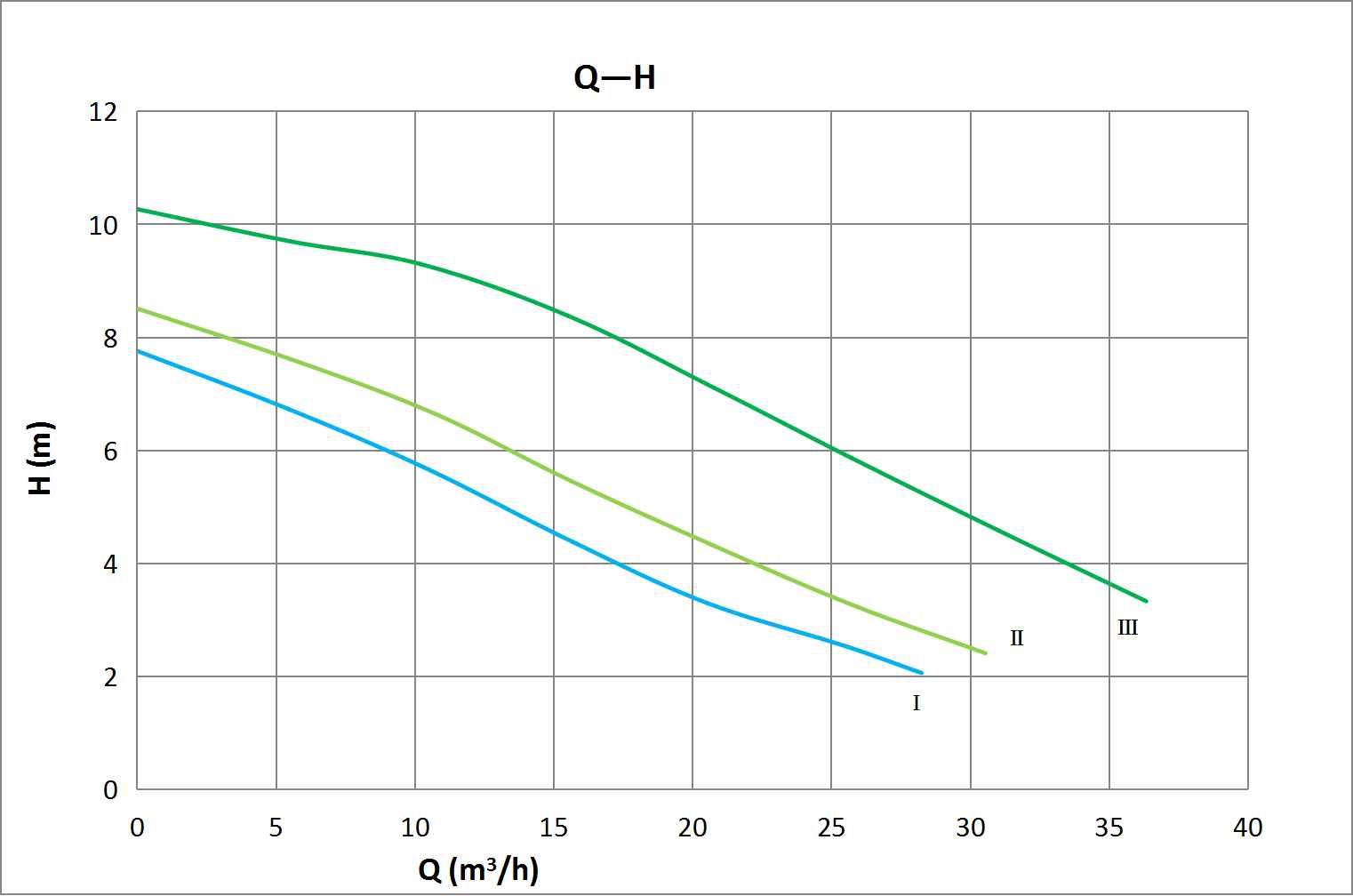

Basic 80-8SF Pro 3010100200054 8 32 1000 50 80 380

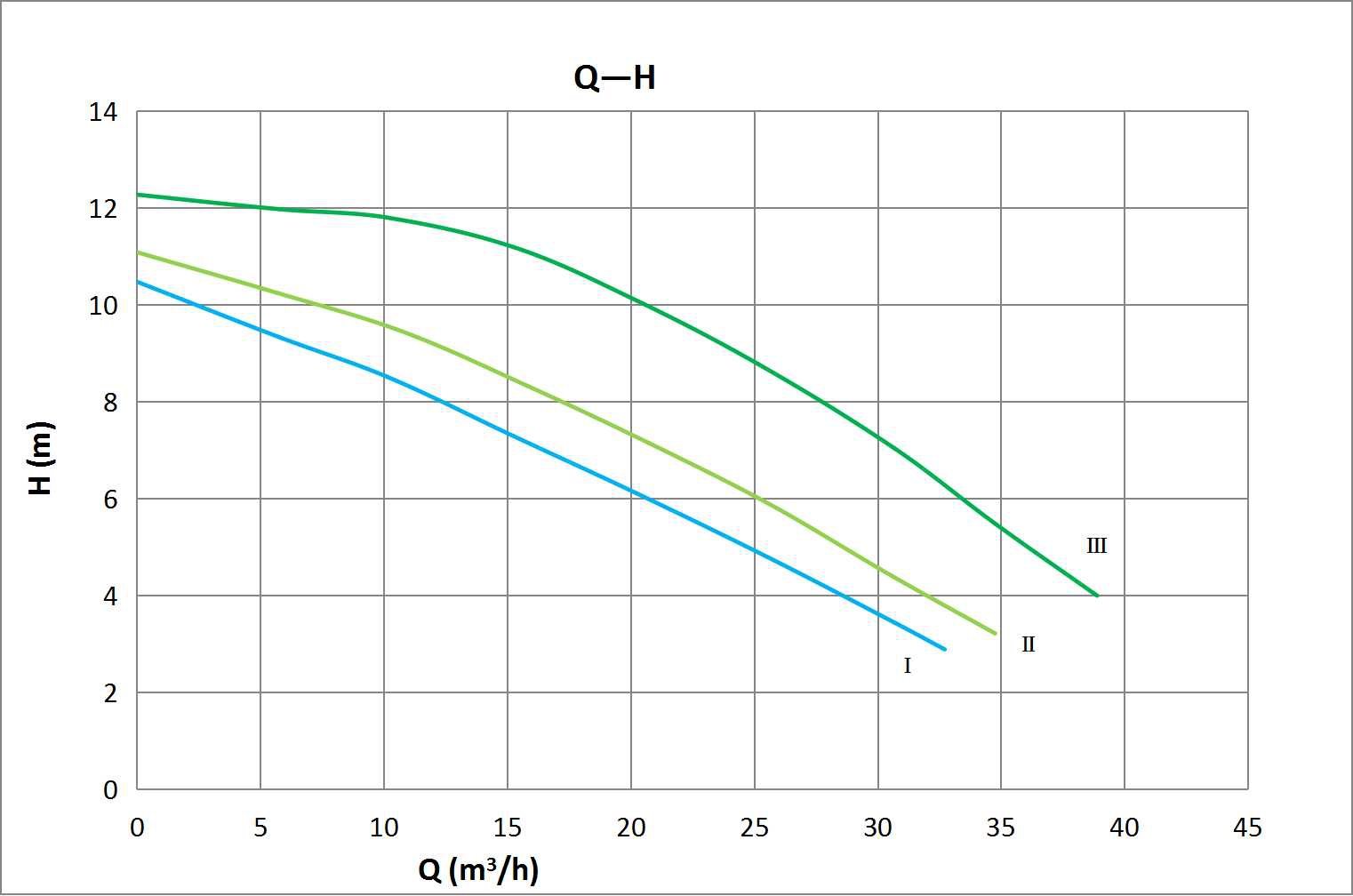

Basic 80-10SF Pro 3010100200056 10 35 1300 50 80 380
Basic 80-12SF Pro 3010100200060 12 40 1500 50 80 380

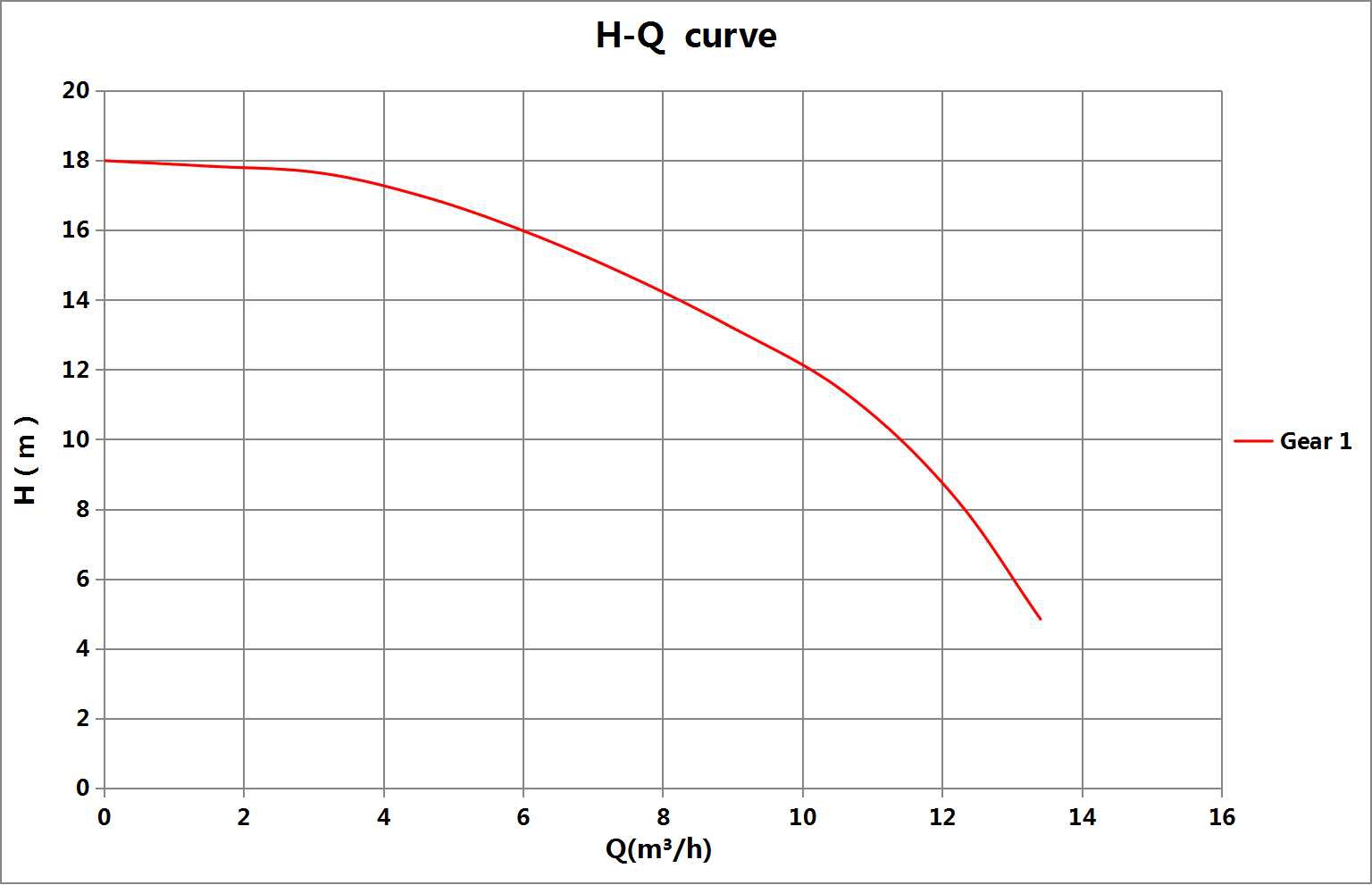

Basic 40-16F Pro 3010100100534 18 13 1000 50 40 230

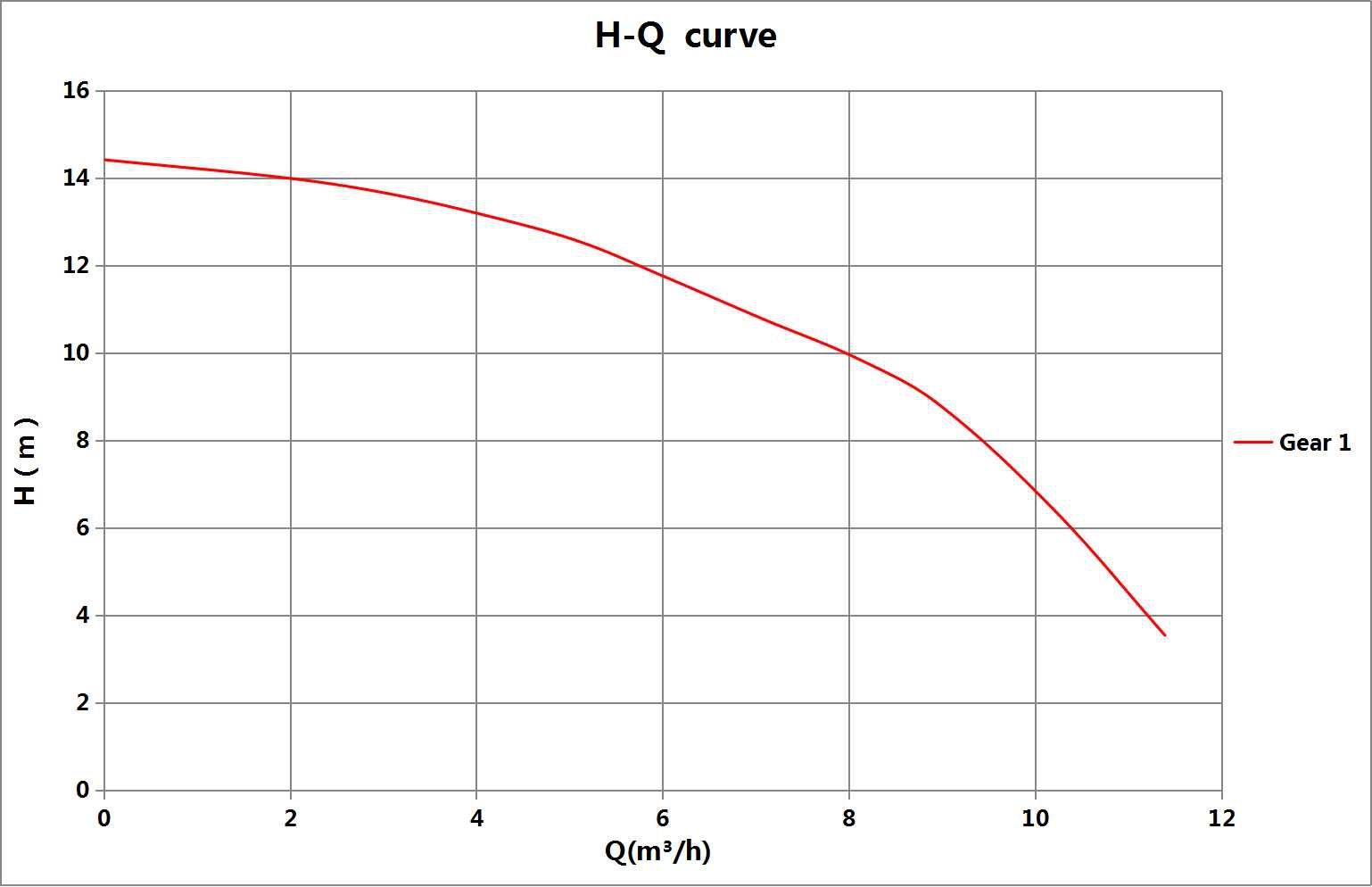

Basic 40-12F Pro 3010100100534 14 11 700 50 40 230

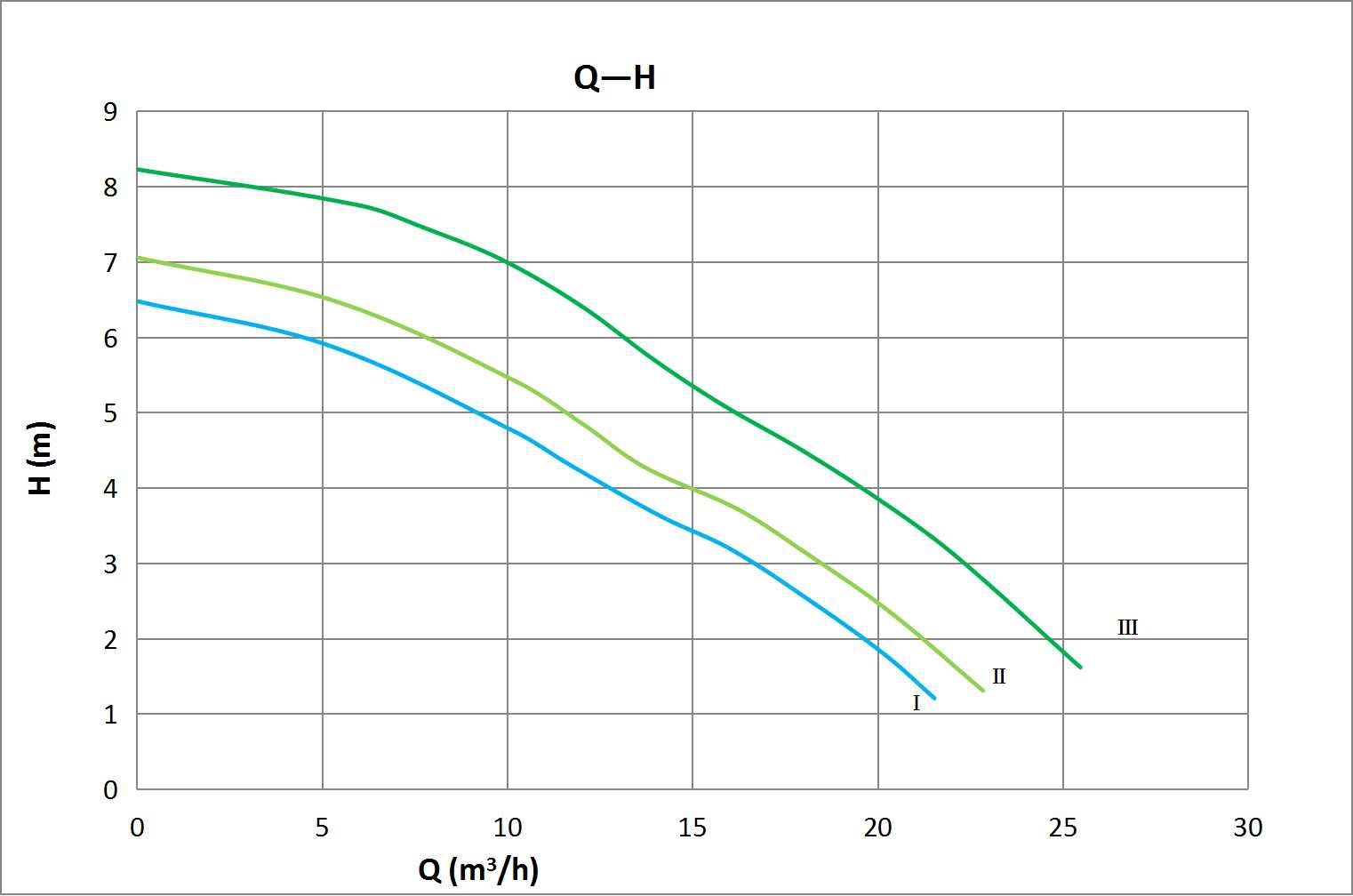

Basic 65-8SF Pro 3010100200041 8 25 700 50 65 380
Basic 65-12SF Pro 3010100200051 12 36 1300 50 65 380

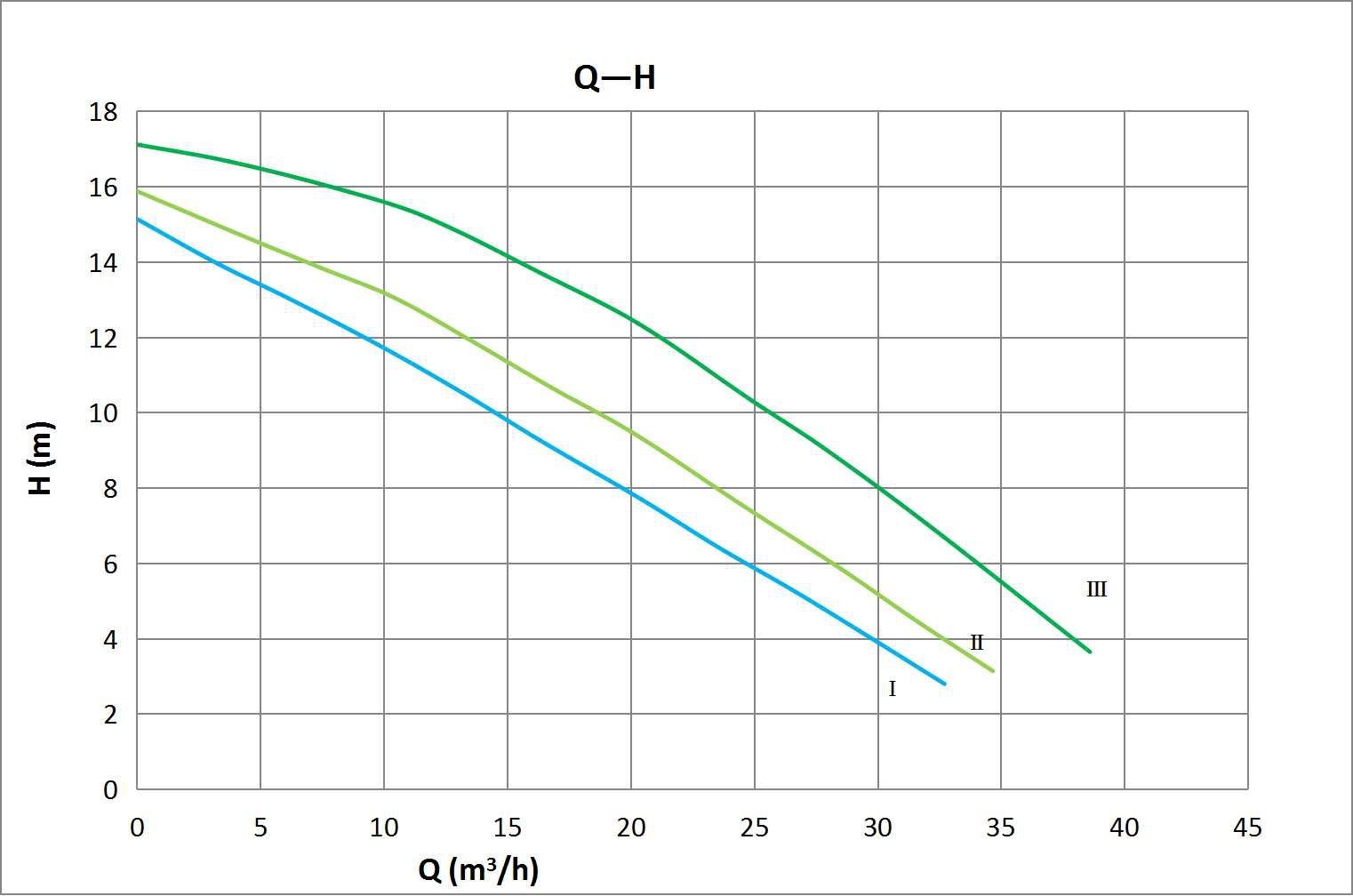

Basic 65-18SF Pro 3010100200062 17.5 37 1800 50 65 380
Basic 25-9S-180 3010100100391 9 6 300 50 25 230

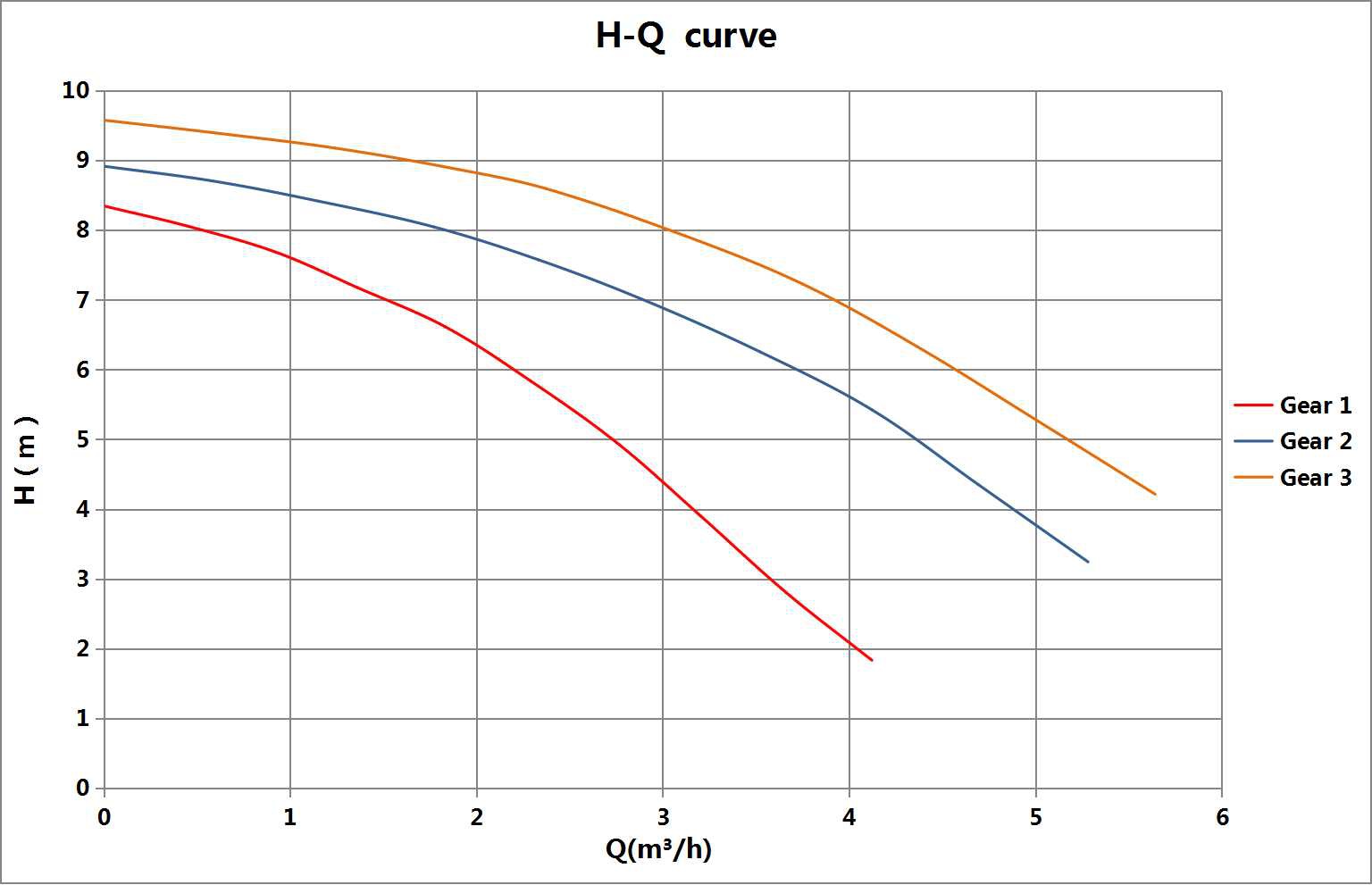

Basic 25-9S-220 3010100100390 9 6 300 50 25 230

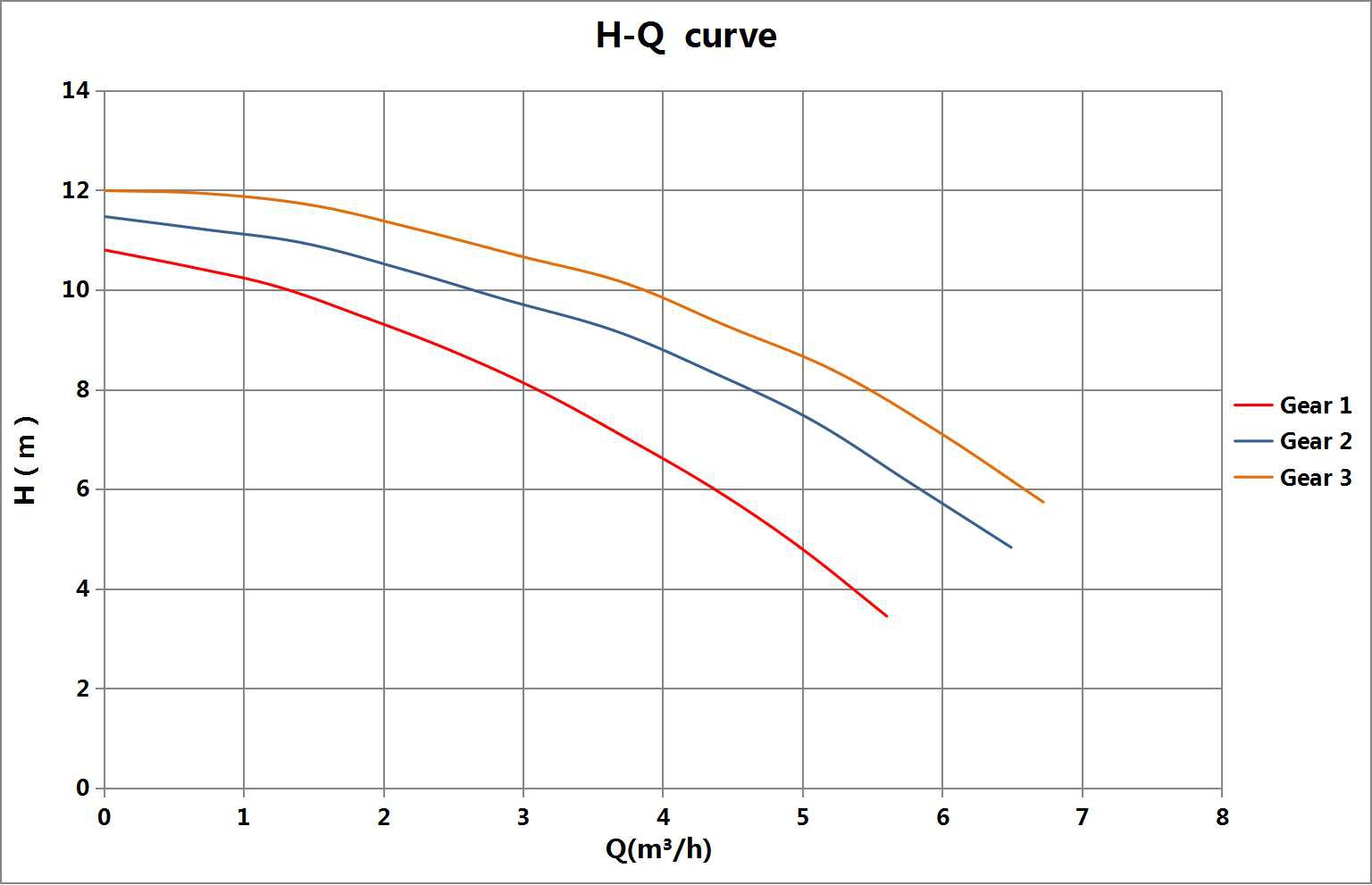

Basic 25-12S-200 3010100100433 12 5 300 50 25 230

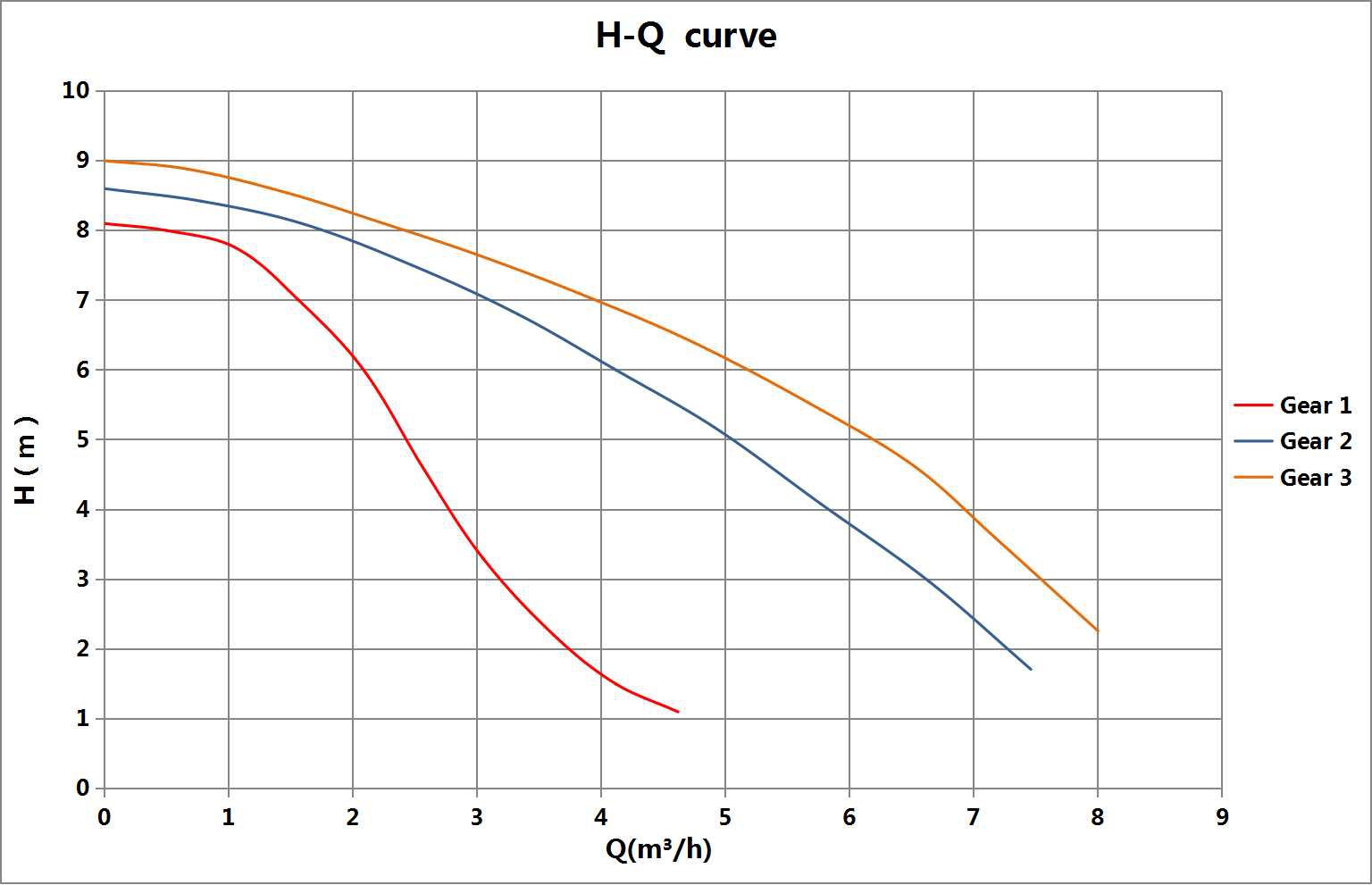

Basic 32-9S-180 3010100100501 9 8 300 50 32 230
Basic 32-9S-220 3010100100500 9 8 300 50 32 230
Basic 32-9SF-220 3010100100502 9 8 300 50 32 230

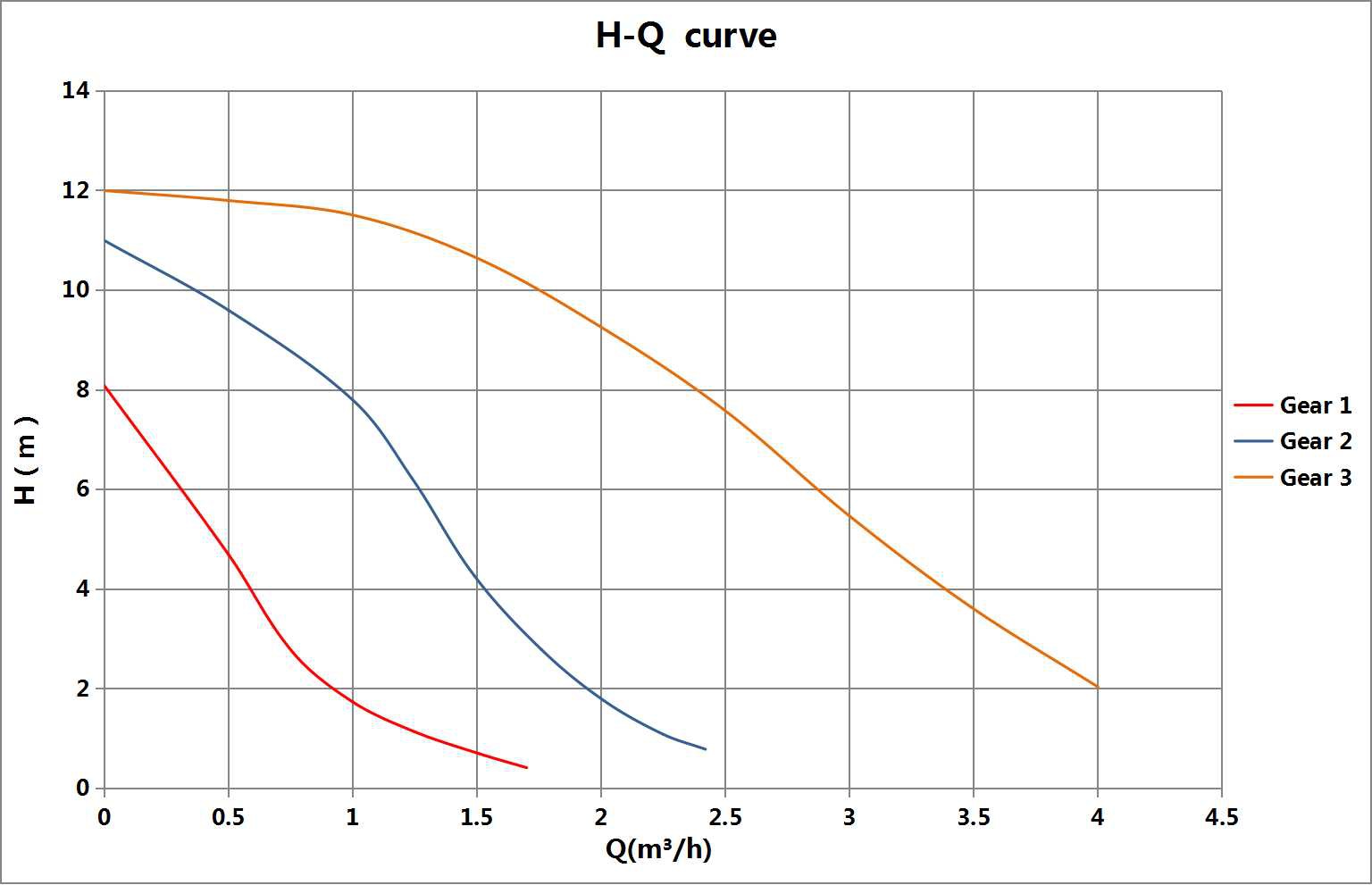

Basic 25-12S-220 3010100100431 12 6.5 500 50 25 230
Basic 32-12S-180 3010100100510 12 10 500 50 32 230
Basic 32-12S-220 3010100100509 12 10 500 50 32 230

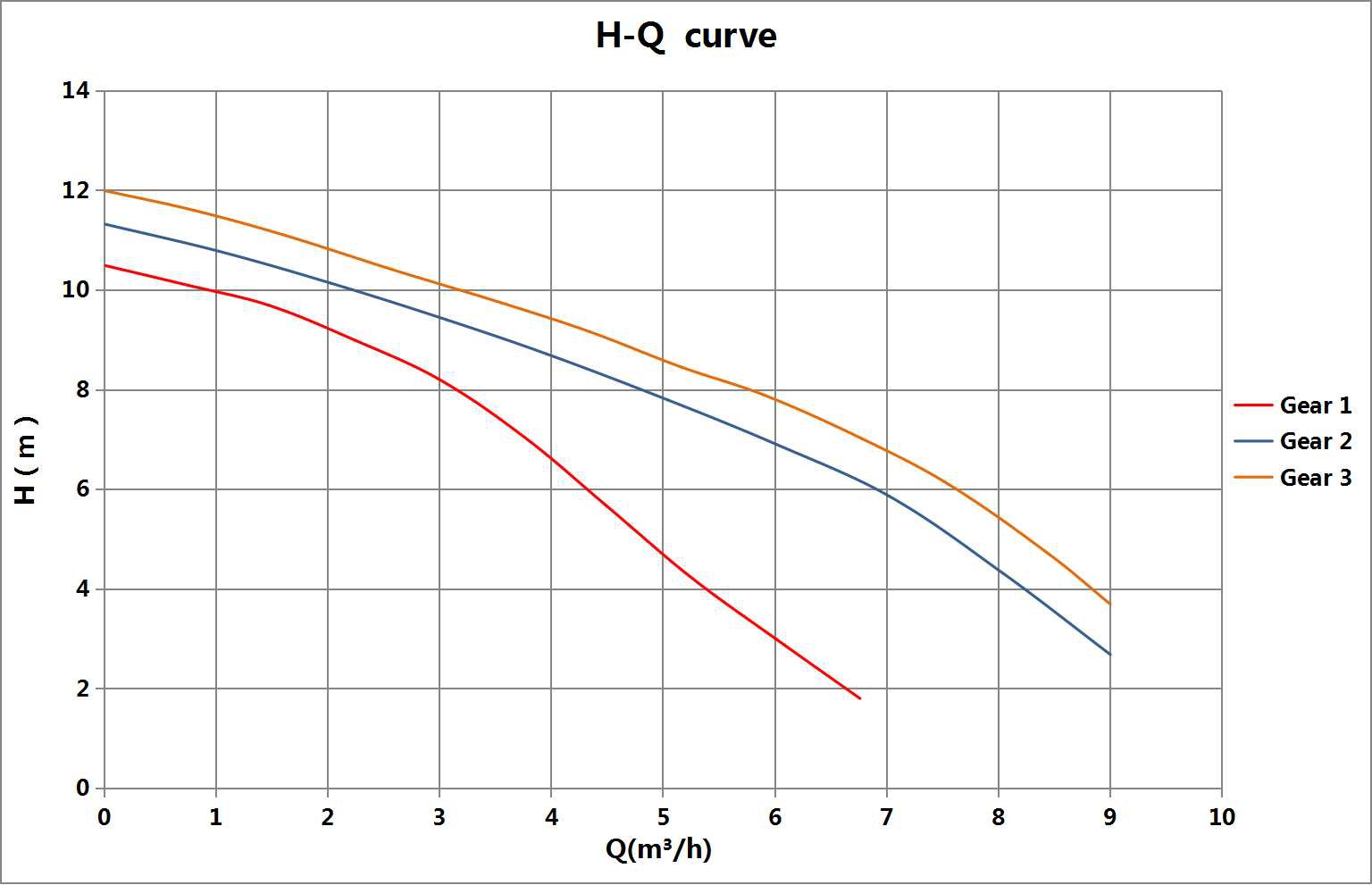

Basic 32-12SF-220 3010100100511 12 10 500 50 32 230
Basic S 20-4S-130 / 0 H 20 20 130 10
Basic S 20-4SN-130 / 0 H 20 20 130 10

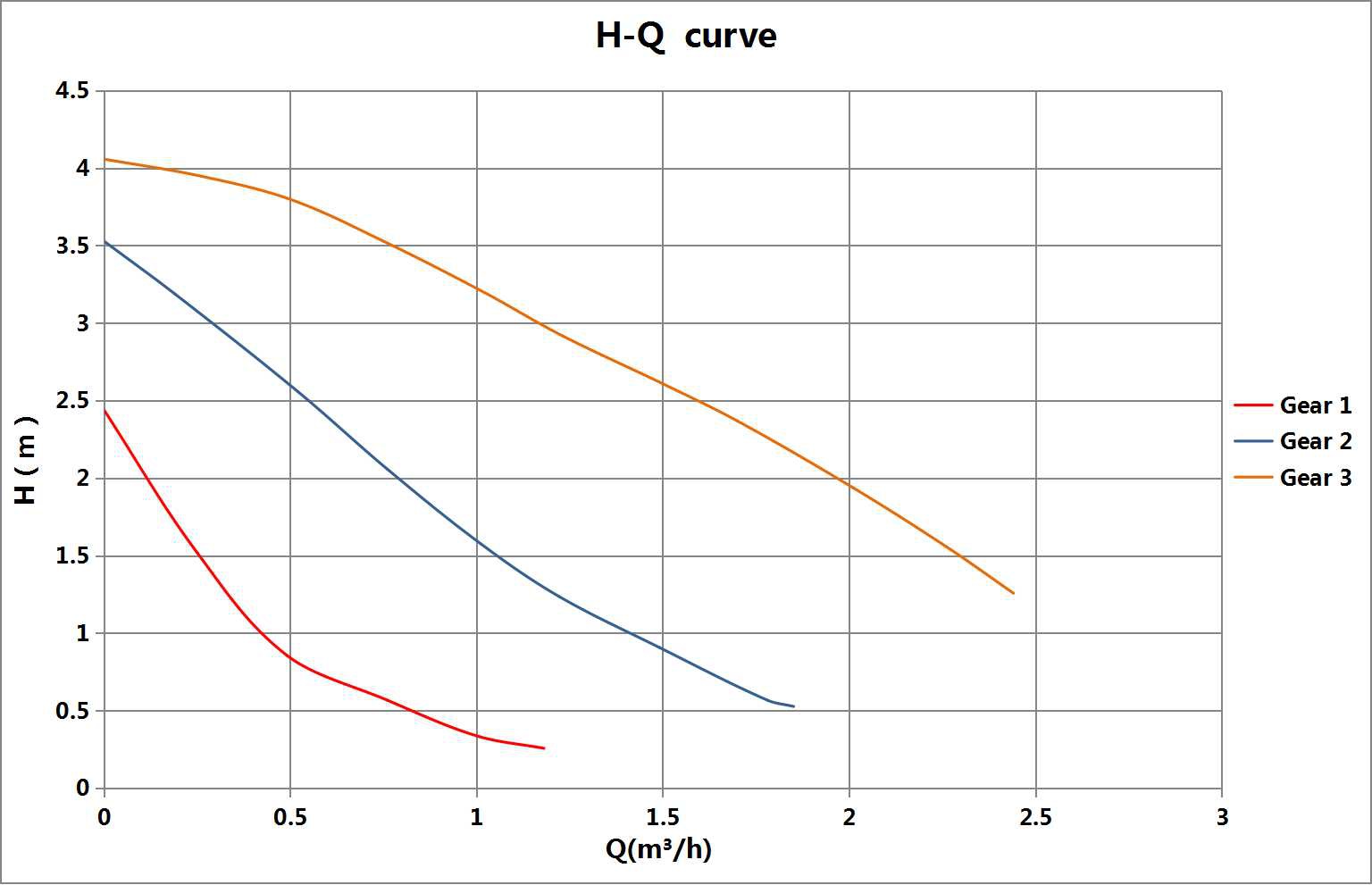

Basic S 25-4SQ-130 / 0 H 25 25 130 10

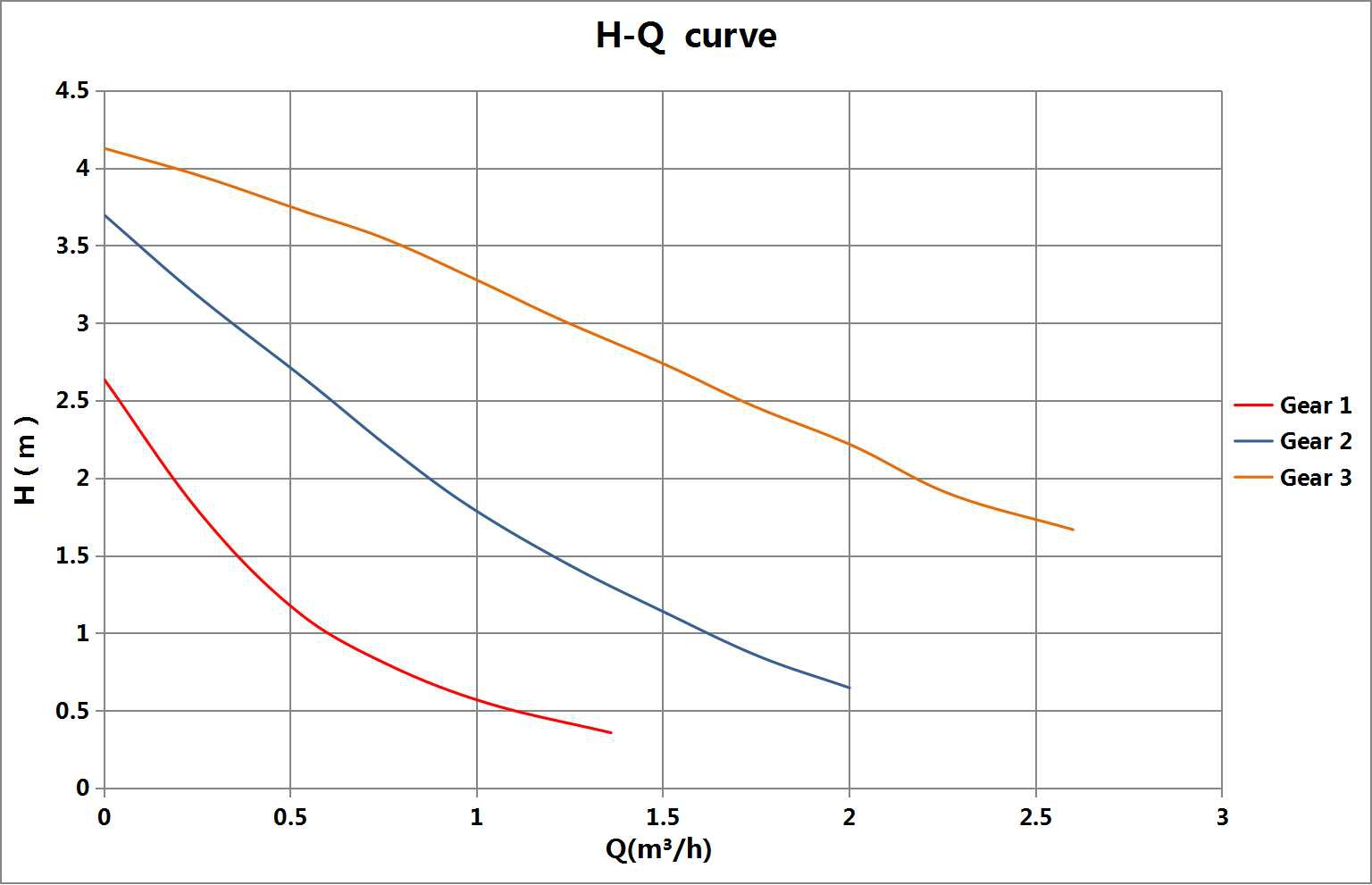

Basic S 25-4S-130 / 0 H 25 25 130 10
Basic S 32-4S-180 / 0 H 32 32 180 10

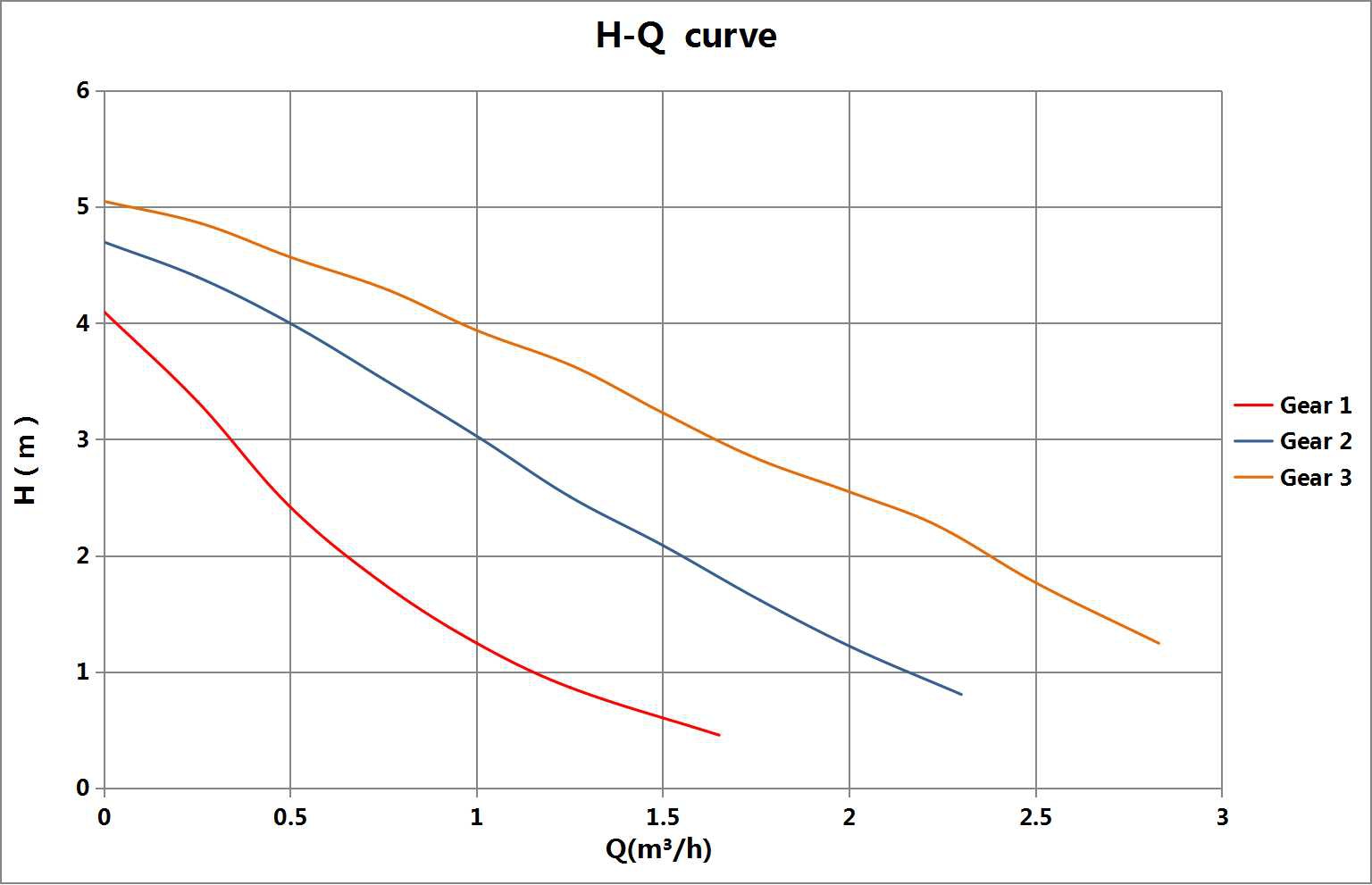

Basic S 20-5S-130 / 0 H 20 20 130 10
Basic S 20-5SN-130 / 0 H 20 20 130 10

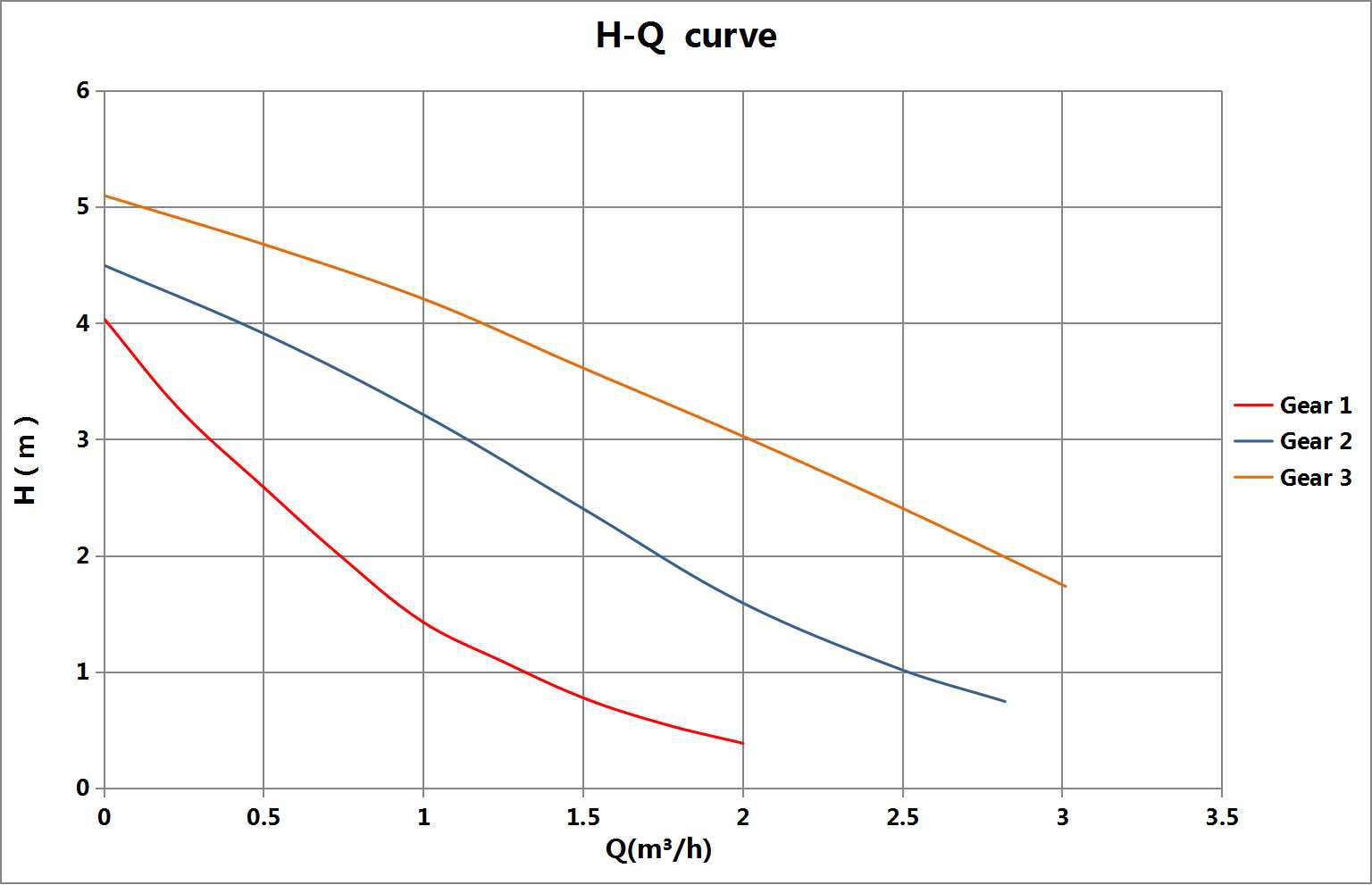

Basic S 25-5S-130 / 0 H 25 25 130 10
Basic S 25-5SQ-130 / 0 H 25 25 130 10

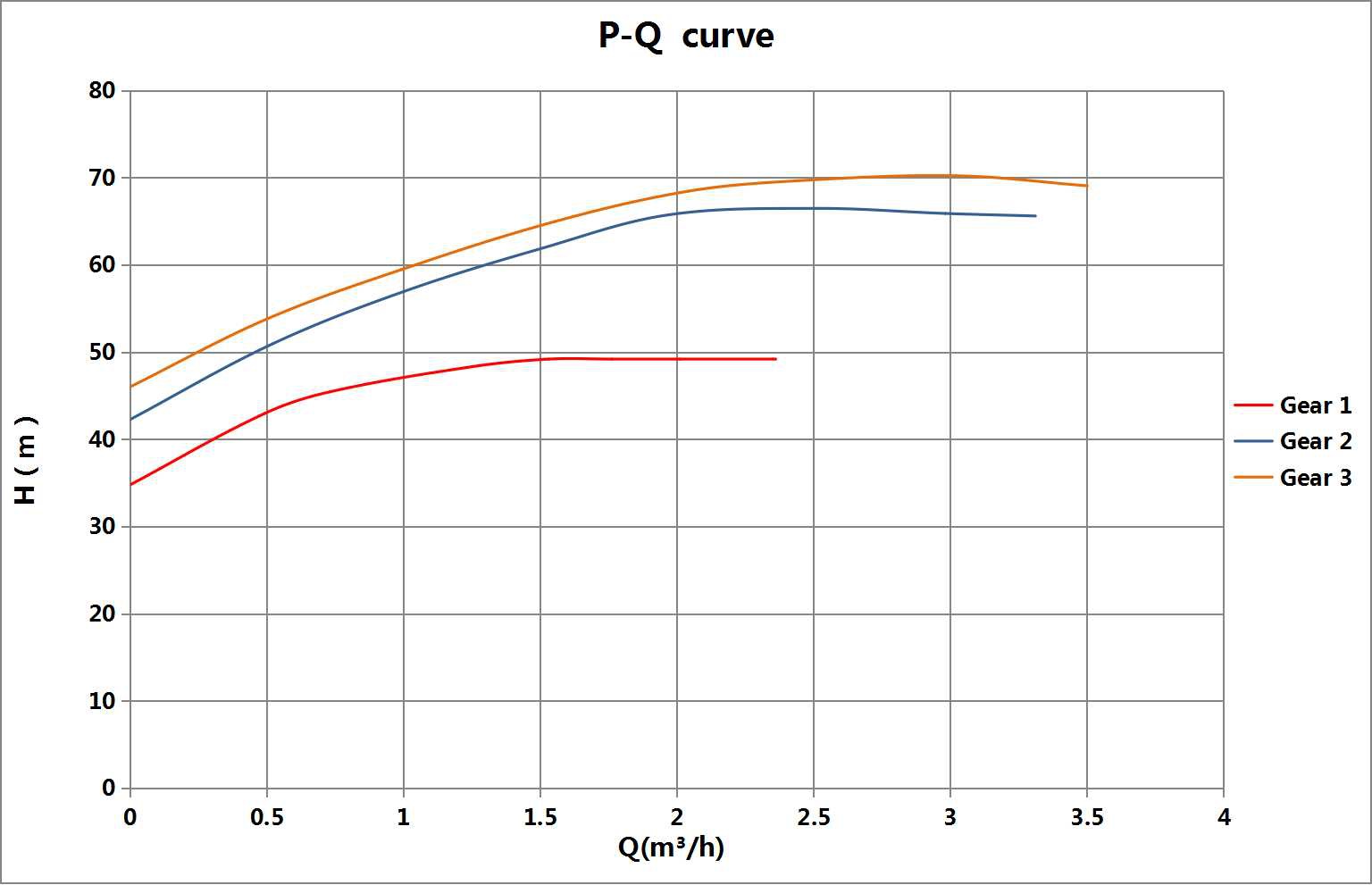

Basic S 32-5S-180 / 0 H 32 32 180 10
Basic S 20-6S-130 / 0 H 20 20 130 10

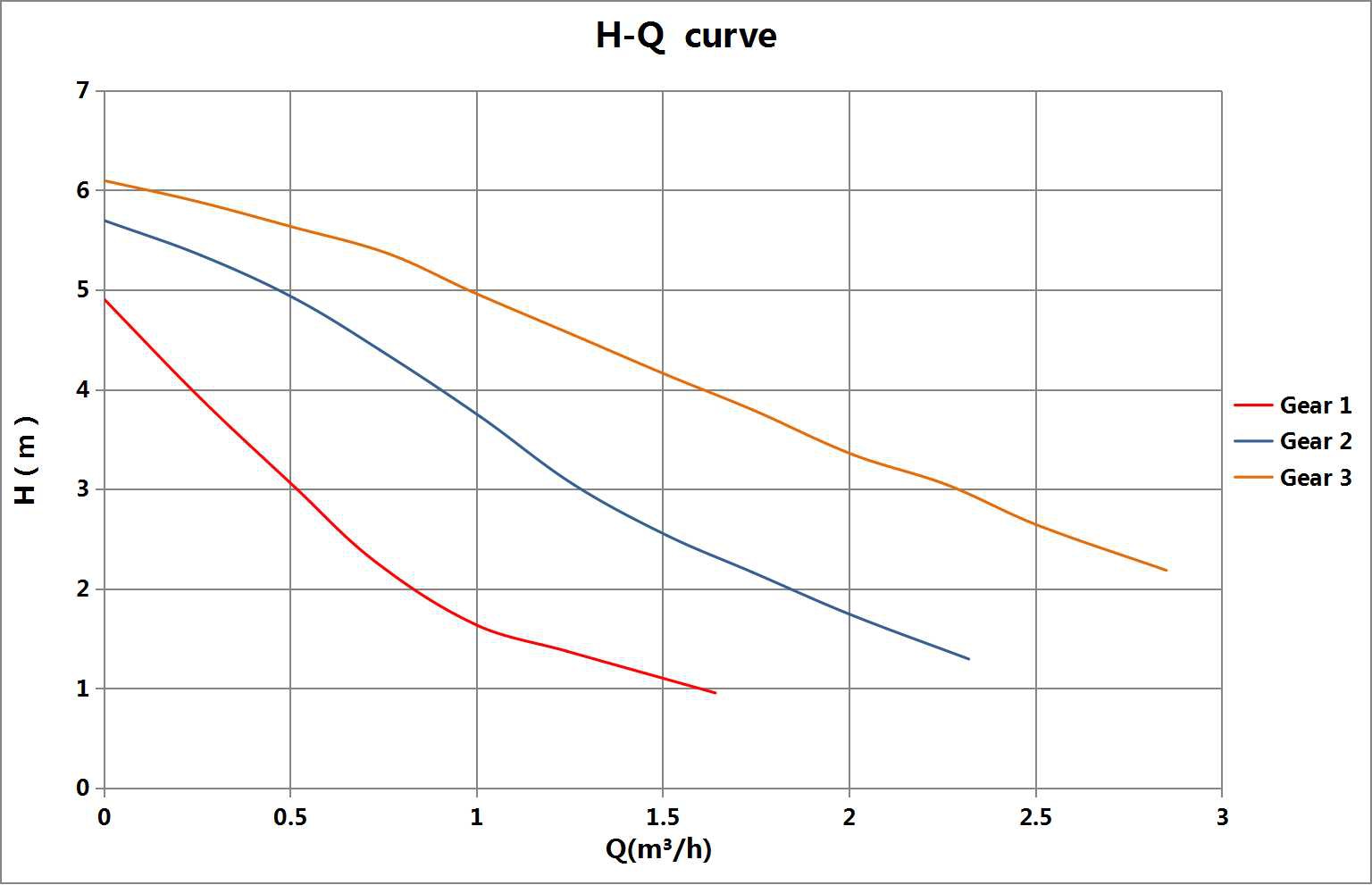

Basic S 20-6SN-130 / 0 H 20 20 130 10
Basic S 25-6SQ-130 / 0 H 25 25 130 10

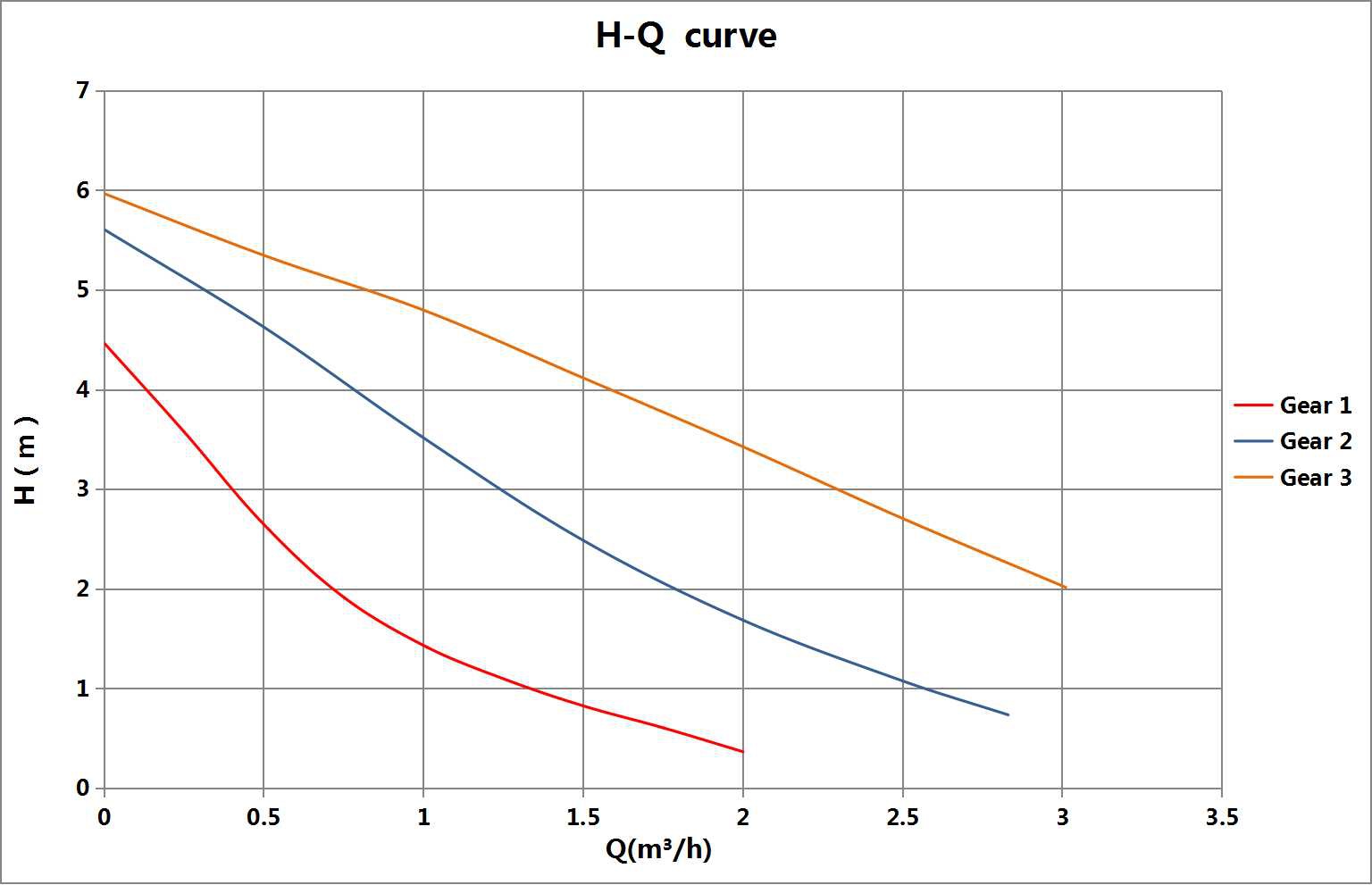

Basic S 25-6S-130 / 0 H 25 25 130 10

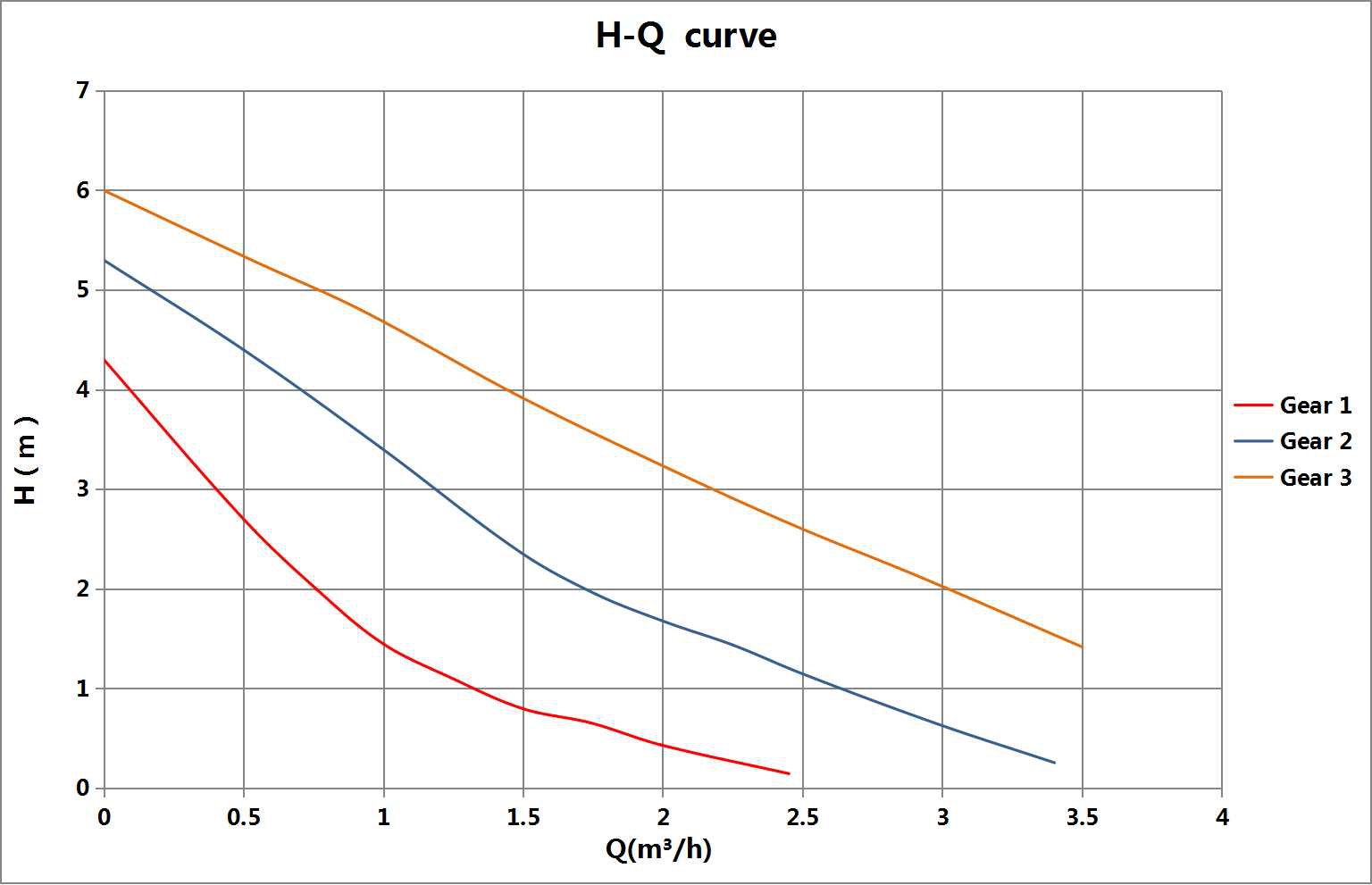

Basic S 32-6S-180 / 0 H 32 32 180 10
Basic S 20-7S-130 / 0 H 20 20 130 10

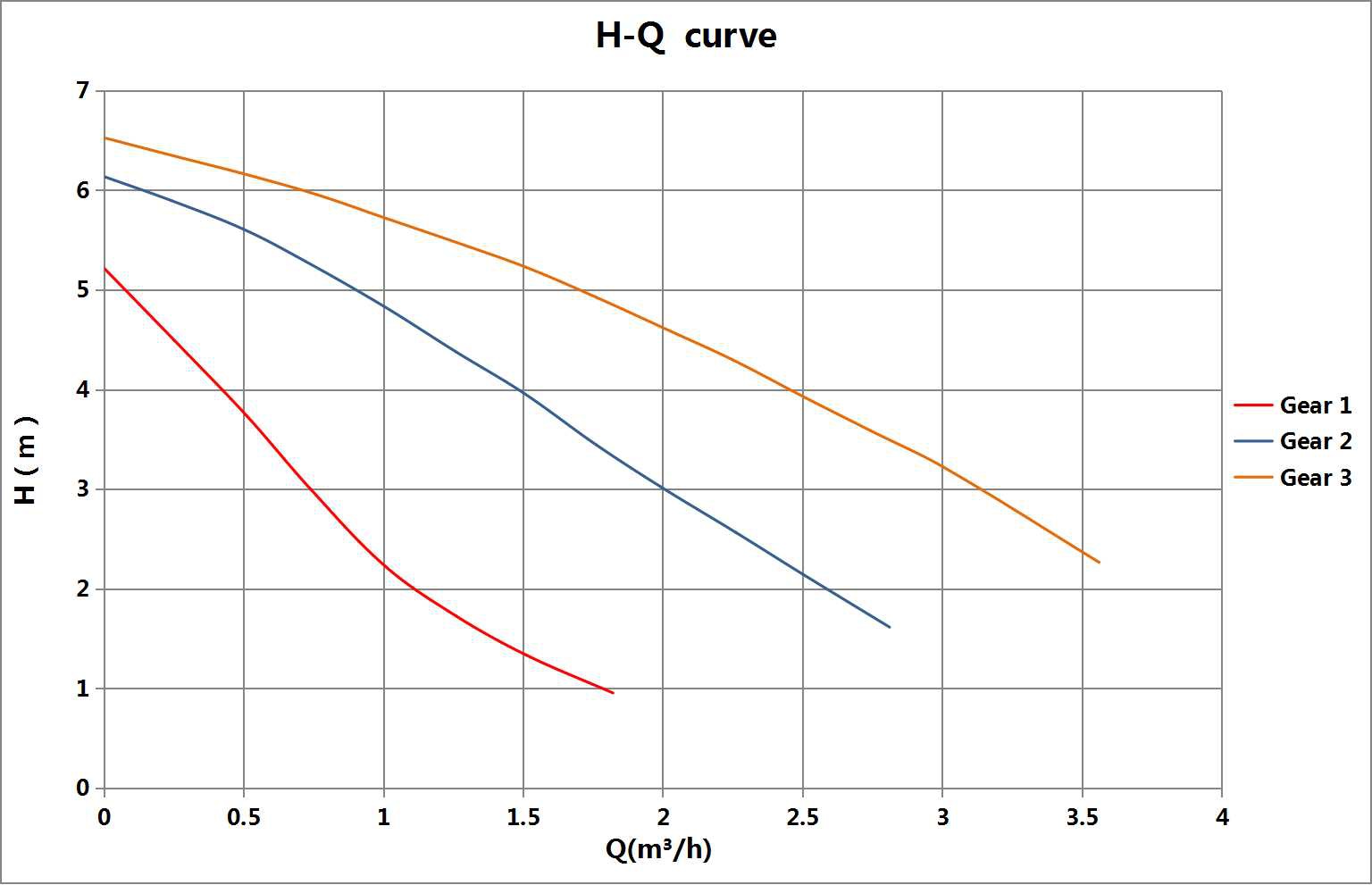

Basic S 20-7SN-130 / 0 H 20 20 130 10
Basic S 25-7SQ-130 / 0 H 25 25 130 10

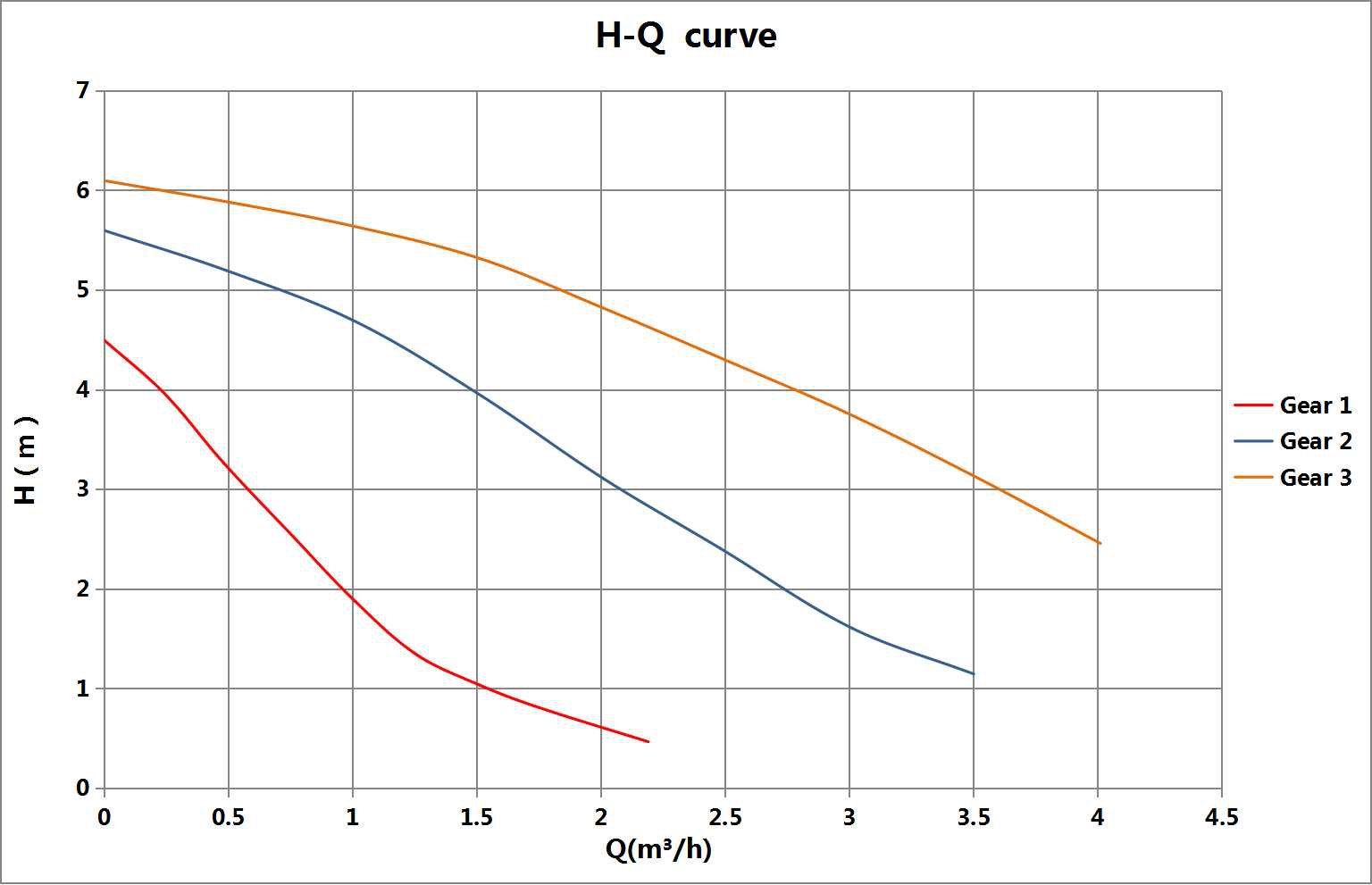

Basic S 25-7S-130 / 0 H 25 25 130 10

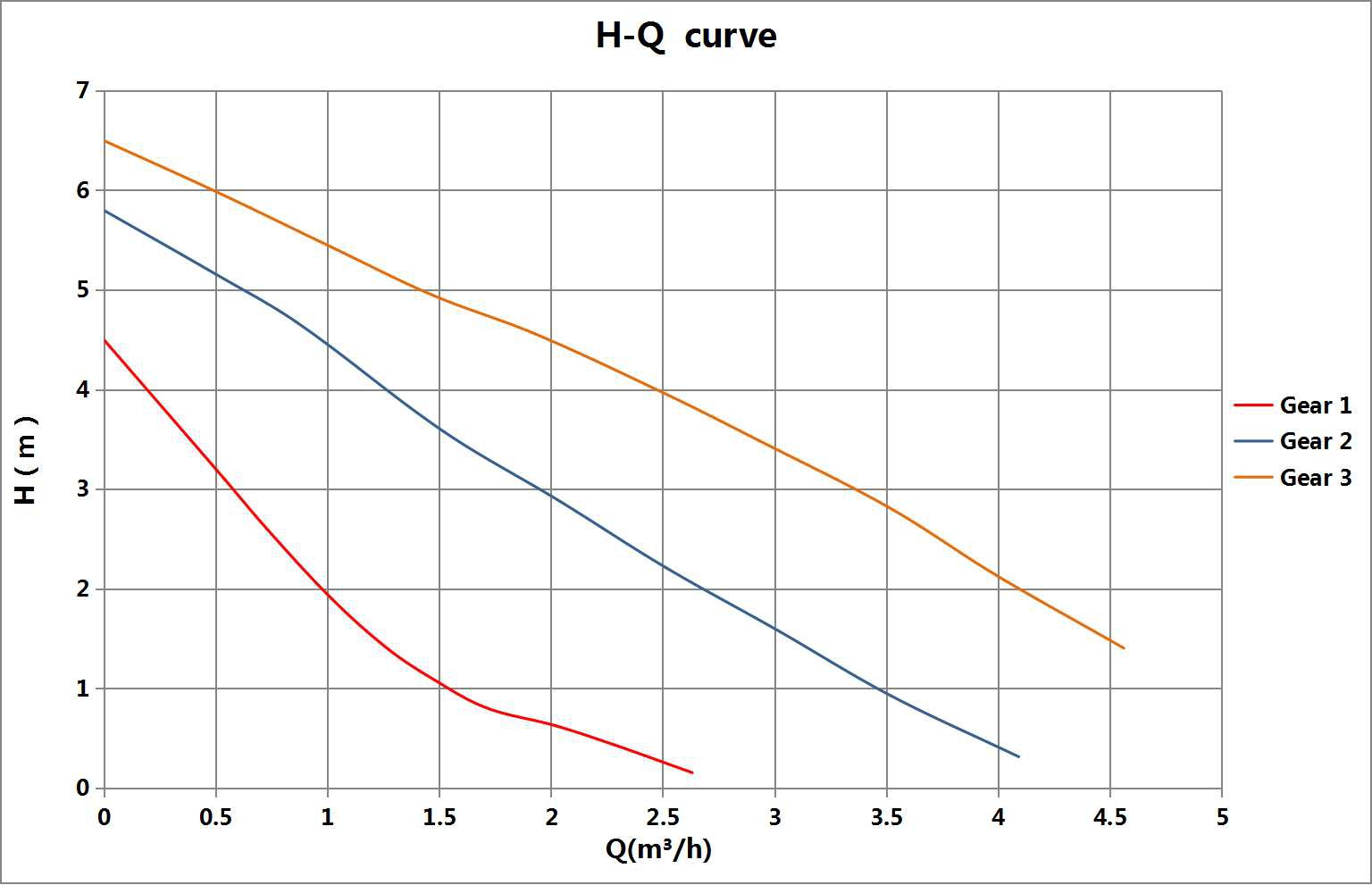

Basic S 32-7S-180 / 0 H 32 32 180 10

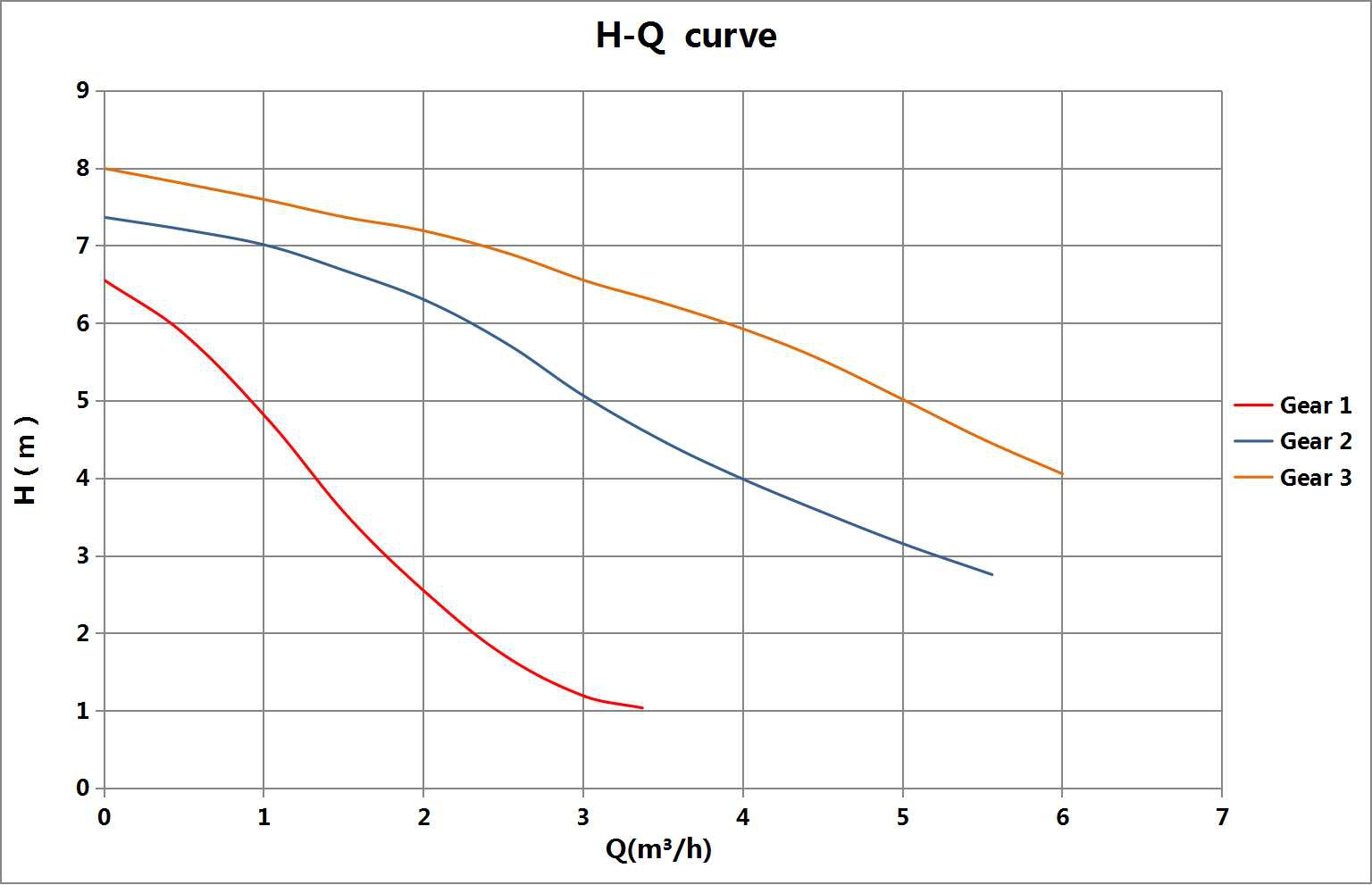

Basic S 25-8S-180 / 0 H 25 25 180 10

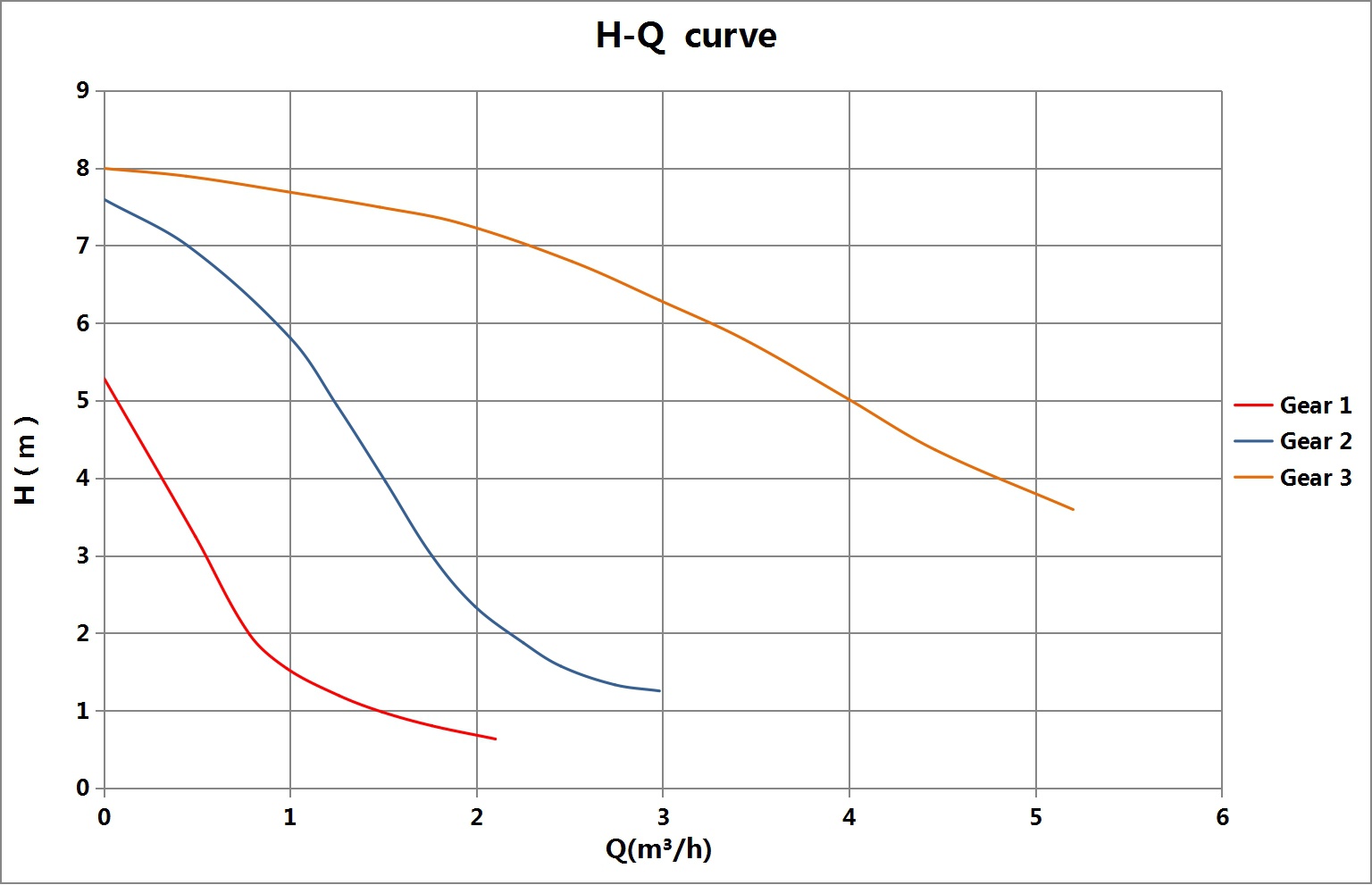

Basic S 25-8SN-180 / 0 H 25 25 180 10

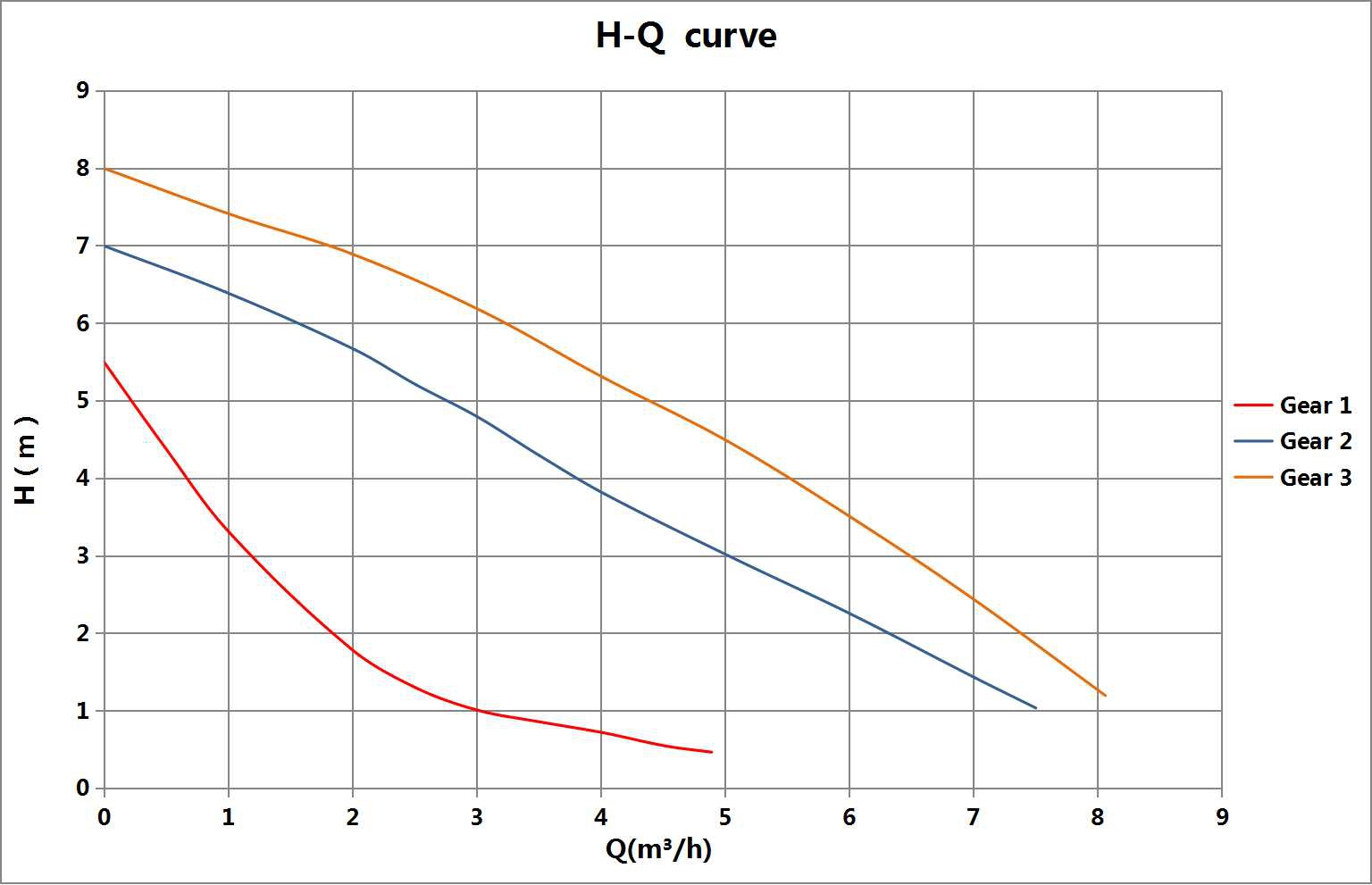

Basic S 32-8S-180 / 0 H 32 32 180 10
Promo 15-9A 7.5 0 H 15 15 160 6
Promo 15-9AB 7.5 0 H 15 15 160 6
Promo 15-9AN 7.5 0 H 15 15 160 6

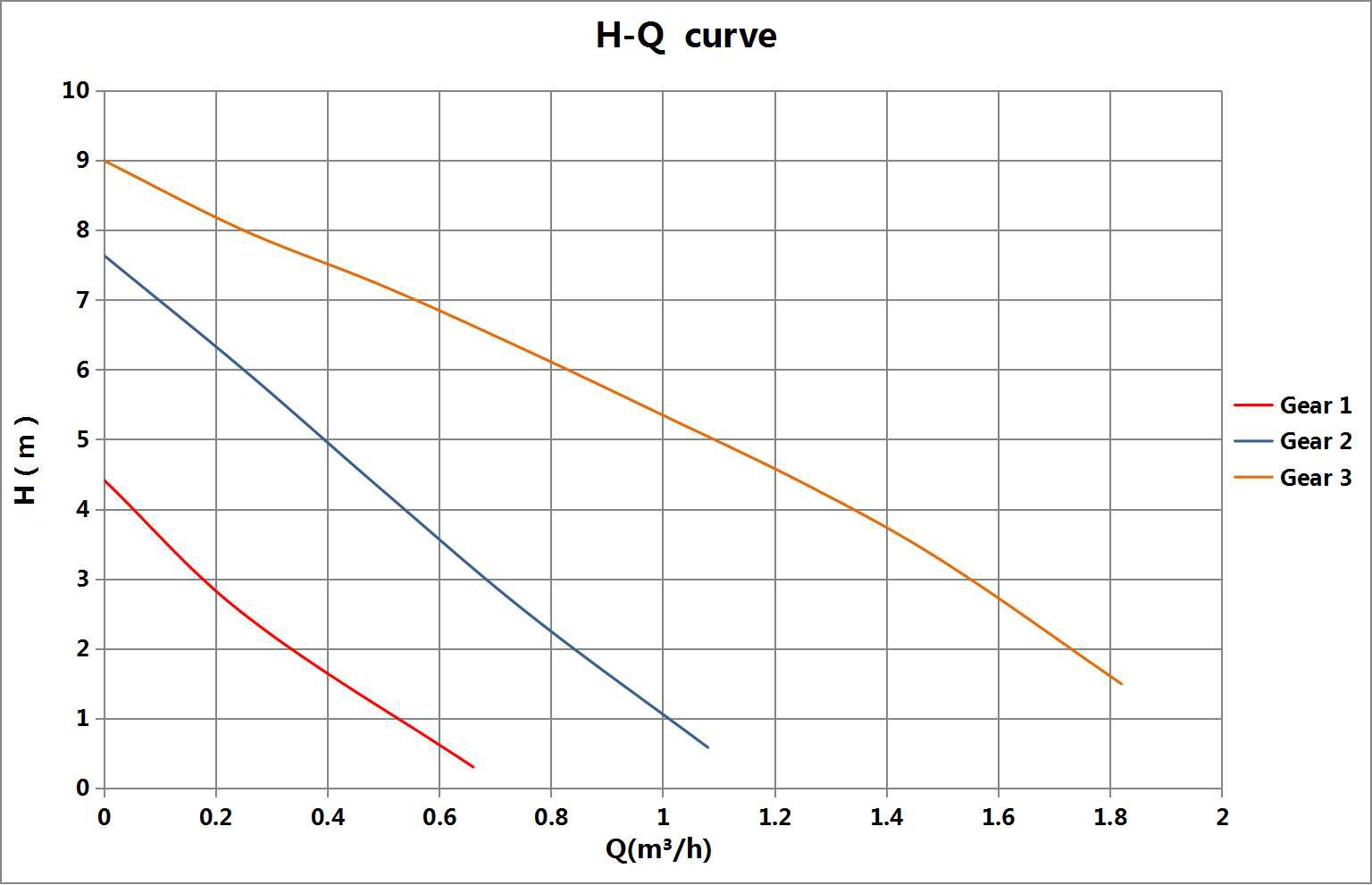

Promo 15-9AQ 7.5 0 H 15 15 160 6

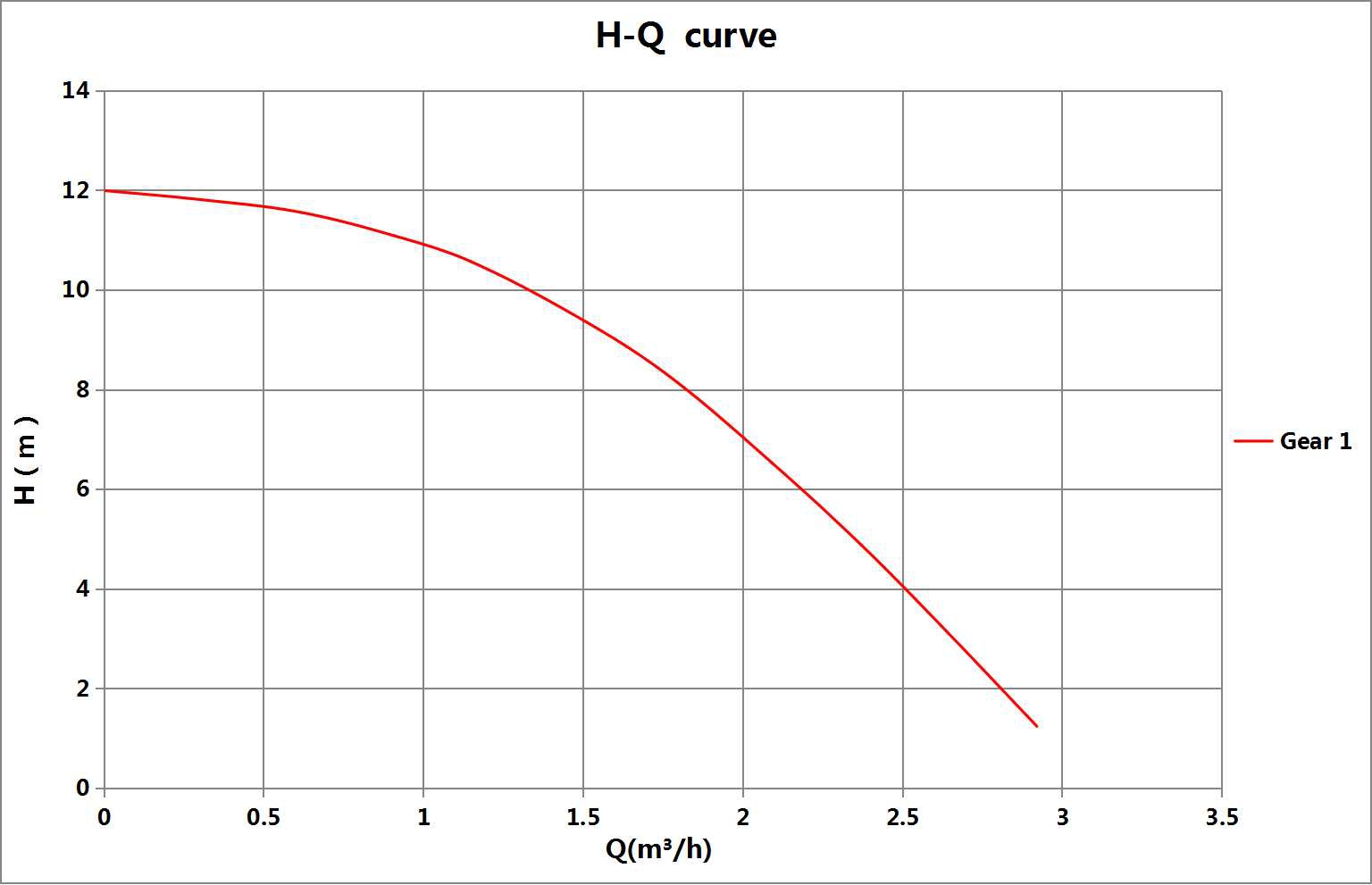

Promo 15-12A 10 0 H 15 15 200 6

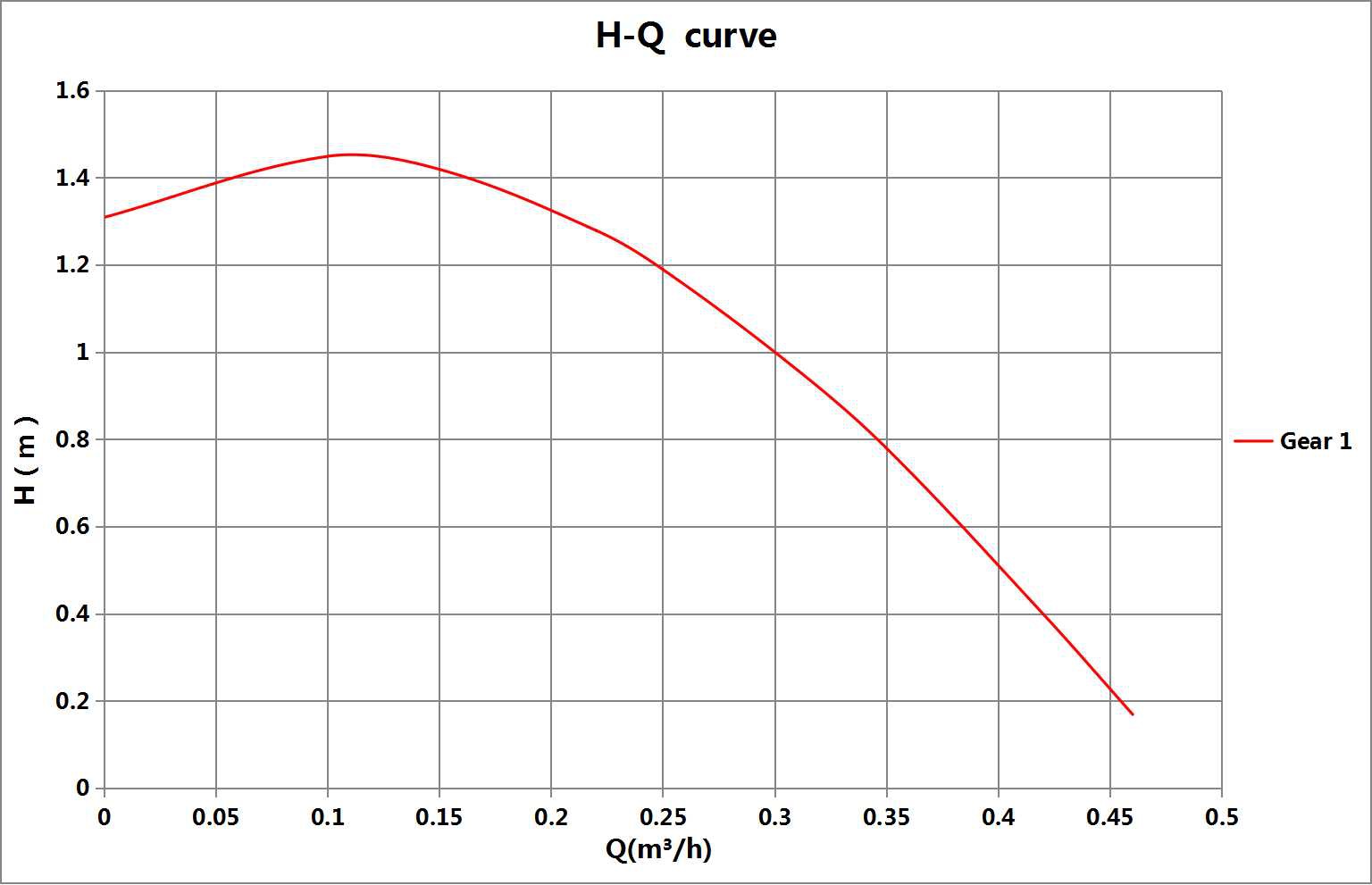

Instant E 15-1.5 1.1 0 H 15 15 85 10
